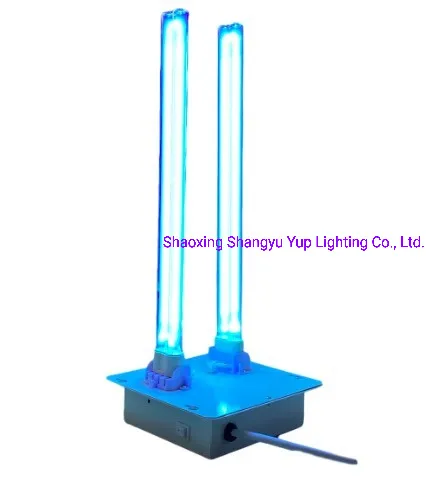

2024UV Air Cleaner in Duct UV Lights Air Purifier Whole House UV Light in Duct for HVAC AC Duct Germicidal Dual Lamp 72W

Product Description

Packaging and delivery

Packaging Details	export carton
Port	ningbo Shanghai
Selling Units:	Single item
Single package size:	44X48X23 cm
Single gross weight:	12.000 kg

Warnings a Safety Instructions
Specifications of Dual 36W H type /U type UVe sterilizer UV air cleanerModel no.YP-H-1/YP-U-1 UVC Sterilizer
.Certificate:CE
·Voltage:110v/220v
·Ballast:over 30000hours lifetime
·Life time of the bulb:9000hours
·Output:80W
·Color of the box:white/black
·Length of bulb:300mm
·Package(carton)size:43*48*23 cm
.Type germicidal:emit UVC light 185nm
·Package details:1 unit in one small box,and 10 boxes in one carton.
Read these instructions carefully and completely before proceeding with the installation.
Never expose eyes or skin to the UVC light from any source.Looking directly at UVC light may cause eye
damage,or even blindness never operate the UV air purifier outside of the ventilation ducts.Only install in a
closed duct system,not at any vented openings
WARNING:For indoor use only.This UV air purifier is for indoor installation only.Indoor means inside the
home or building.(Not inside a heat or AIC unit that is outside the home or building)
Do not test lamp until the installation is complete.
1.Choose a location.Either downstream
air plenum.Do not mount near a return
registered grill.
Important (mount at least 20 inches away
2.Cut or drill a 1.8"hole for the bulb.For
3.Insert lamp through hole.Press the
hold(lock)
Make sure the bulbs be installed well.
Secure base with the enclosed screws.
Warning:Do light up after installation
of both lamps.It can only work when
both lamps are installed well.
4.Plug into standard outlet.
(These units are mounted in attics or crawl spaces)
shorten life of bulb.
Finger grease,which makes a fingerprint,
should not be on the glass.If you touch the glass with your bare hand or finger use isopropyl alcohol to wipe it clean.
Note:When multiple lamps are used,spacing between lamps should be at least four inches apart
WARNING:Disconnect power before servicing chance of electrical shock,may cause injury or death.Un-plug lamp before changing bulb exposure to UV light is dangerous and may cause harm to skin or eyes.
