Aspheric Grinding Machine Raytek-Asg600

Product Description

1. OverviewThe Aspheric grinding machine Å FiSy ASG600 developed by RAYTKE-AFISY Technology adopts a high-precision marble lathe, imported high-performance grinding electric spindle, fully automatic constant temperature circulation control of grinding fluid, and the equipment has a 5-axis 5-linkage function,
Autonomous motion control technology, maximum machinability Φ 600mm sized workpiece with flat,The ability to grind and shape optical components with different surface shapes, such as flat surface,spherical, Aspheric features face and off-axis surfaces.
Figure 1 Appearance of Å FiSy GRD Series Aspheric Grinding Machine

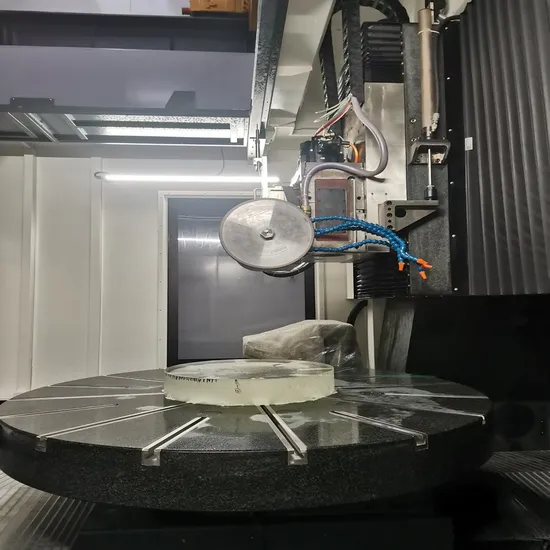

Figure 2 Aspheric Grinding Machine Å FiSy ASG Series in Grinding
Figure 3 Aspheric grinder Å FiSy ASG series is currently using a 3-coordinate probe for detection
The FiSy ASG600 has the following characteristics and advantages.
1. The overall marble frame structure and marble has been buried underground for many years, and the structure is quite stable, which is high and the most ideal bed for precision equipment;
2. 5-axis 5-linkage (X/Y/Z/A/C);
3. Imported high-performance grinding electric spindle;
4. Autonomous intellectual property movement control technology;
5. The process system has complete and comprehensive monitoring functions, and has fault alarm functions such as unexpected power outage, liquid interruption, and gas interruption;
6. The control software is highly intelligent and has advanced functions such as processing protection, remote assistance, and logging.
7. Equipped with high-precision three coordinate measuring heads, equipped with position detection and surface shape detection functions, and with compensation grinding function.
The Å FiSy ASG600 Aspherical grinding machine from Evergrande Technology has the advantages of high stiffness, high precision, high dynamic characteristics, powerful functions, and convenient and intelligent operation.
2.Main technical indicators of the equipmentThe entire structure adopts a gantry structure with fixed columns; Using natural granite materials. Has X, Y, Z, A, and C motion axes. The workpiece has X and C movements, and the grinding axis has Y, Z, and A movements.
(1) Motion axis travel and maximum speed X-axis: 1000mm, maximum X-axis speed: 8000mm/min; C-axis:n×360°,maximum C -axis speed:10rpm; A -axis:±45°,maximum A -axis speed:10rpm; Z -axis:300mm,maximum Z-axis speed 5000mm/min; Y-axis:600mm,maximum X-axis speed:8000mm/min; (2) Accuracy X-axis straightness: ≤ 0.005mm, X-axis positioning accuracy: ≤ ± 2 μm; Grinding accuracy:≤ 5µm PV/300mm. Repeatability of three coordinate measuring heads:≤0.5μm; C-axis repeated positioning accuracy:≤±0.002°; A-axis repeated positioning accuracy:≤±0.002°; Z -axis straightness::≤0.005mm,Z-axis positioning accuracy:≤±2μm; Y -axis straightness::≤0.005mm,Y-axis positioning accuracy:≤±2μm; (3) Milling and grinding processing unit Milling and grinding processing unit:20000rpm; Equipped with automatic grinding fluid filtration function, maximum filtration flow rate: 120L/min. Automatic constant temperature cycle control of grinding fluid, constant temperature accuracy: ± 1 ºC; Grinding fluid temperature control range: 20~30 ºC; Precision of tool setting system: 0.002mm; Axial runout of electric spindle: 0.005mm; Radial runout of electric spindle: 0.002mm; (4) Process system The control software has complete functions and can adapt to the grinding and processing of optical components with different surface types such as flat, spherical, Aspheric, and off-axis surfaces; The workpiece can be compensated for grinding based on its own coordinate measurement data or external detection data. Equipped with high-precision coordinate measuring heads, equipped with position detection and surface shape detection functions. The control software is highly intelligent and has advanced functions such as processing protection, remote assistance, and logging. Process software is compatible with various mainstream surface data formats for input;' The process system has complete and comprehensive monitoring functions, and has fault alarm functions such as unexpected power outage, liquid interruption, and gas interruption; (5) Equipment size specifications
Land occupation size:3.5mХ3.0m; Total height of equipment:2.8m; Equipment power: 15KW; Total weight of equipment: 6 tons; Power supply: three-phase 380V/220V, 50Hz; (6)Work environment
work temperature:20ºC-22ºC;
cleanliness:100000 level
Compressed air: pressure 0.6 ± 0.1MPa;
Relative humidity: between 40% and 60%.
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, South Africa, UAE, Egypt, Norway, Netherland, Russia, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union or L/C
Delivery time: 7-10 days.
Quality Warranty: Shanghai Zprinting offers quality warranty for our lasers products with "3R" policy. For any inferior-quality products, Zprinting company is responsible for return, replacement and refund.
For specific installation and operation, please refer to the product manual or contact customer service for operation tips or videos after receiving the product. The equipment is guaranteed for one year, and artificial or abnormal damage is not covered by the warranty. If it exceeds one year, a certain fee will be charged for the relevant after-sales service. This device will continue to be optimized and improved due to various factors. At that time, please pardon us not notify separately. Thank you for your support and understanding.
