Hydraulic Roll Crusher with Controllable Pressure Between The Two Rolls to Increase Production and Reduce Energy Consumptionhydraulic Roll Crusher with Controll

Product Description

Product Introduction

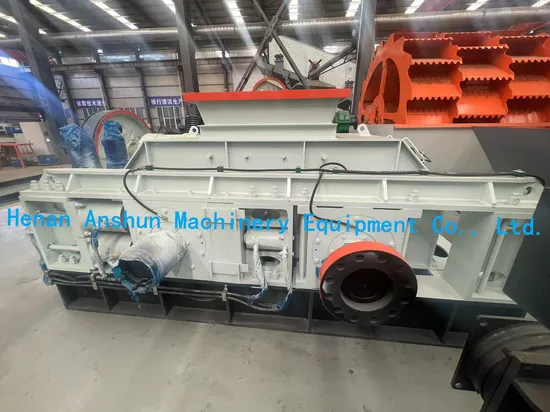

The hydraulic roller mill is a type of machine extended from the spring roller mill. The advantage of the hydraulic structure is that it can accurately control the pressure between the two rollers. Long-term continuous operation can still ensure the crushing pressure between the two rollers. Therefore, equipping the roller mill in the grinding system can give full play to the production capacity of the grinding equipment, generally increase the output by 30% - 40%, and reduce the total energy consumption by 20%~30%.
Product AdvantagesThe double-roll crusher has the advantages of good particle shape, high yield, strong adaptability, low energy consumption and easy maintenance in sand making effect. It plays an indispensable role in the whole sand and gravel production line. The double-roll crusher can not only reduce the dependence on natural sand, but also utilize resources such as river pebbles to realize the recycling of resources, which has good economic and environmental benefits.
Working Principle
The hydraulic roller sand making machine mainly uses a V-belt or universal joint coupling to drive and adjust the gap between the two rollers, uses a hydraulic cylinder to control the pressure of the rollers, and uses two rollers to squeeze and crush the materials. The material falls between the two rollers through the feeding port, and the finished product falls naturally after being squeezed and crushed by the rollers. When encountering hard or unbreakable materials, the rollers can automatically retreat by the action of the hydraulic cylinder, so that the gap between the two rollers becomes larger, and the hard or unbreakable materials fall naturally, so as to ensure that the machine is not damaged. There is a certain gap between the two rollers rotating in opposite directions. By changing the gap, the discharge particle size of the product can be controlled.
The working principle of the roller crusher is to use the relative rotation between the two rollers to squeeze and crush the raw materials between the two rollers, thereby producing shearing and crushing effects. After the high-speed rotation of the rollers, the raw materials finally form the required sand and gravel aggregates.
Specifications and Performance Parameters

Model	Roll Diameter(mm)	Roll Width(mm)	Feeding Size(mm)	Capacity(t/h)	Power(kw)
2PGY750X500	φ750	500	≤40	20-30	2×(22-30)
2PGY800X600	φ800	600	≤40	30-40	2×(30-37)
2PGY800X800	φ800	800	≤40	40-50	2×(37-45)
2PGY1000x800	φ1000	800	≤40	50-80	2×(45-55)
2PGY1000x1000	φ1000	1000	≤40	80-100	2×(55-90)
2PGY1200x1000	φ1200	1000	≤60	100-120	2×(75-132)
2PGY1200x1200	φ1200	1200	≤60	120-150	2×(90-132)
2PGY1500x1000	φ1500	1000	≤80	150-200	2×(132-160)
2PGY1800x1000	φ1800	1000	≤100	250-300	2×(250-315)
2PGY2000x1200	φ2000	1200	≤120	300-400	2×(315-355)

Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
