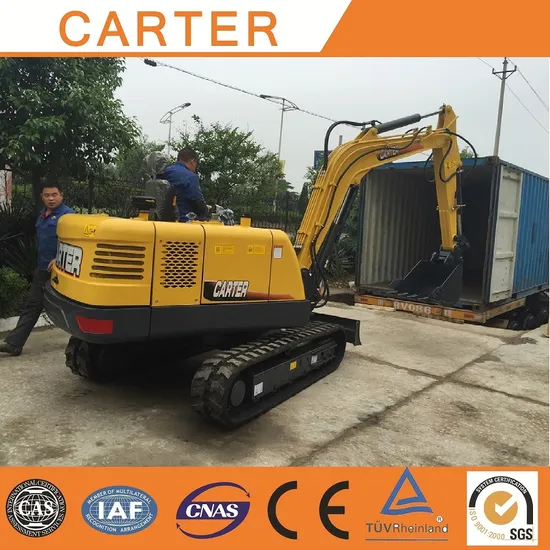

Backhoe Type CT45-8b (4.5t) Multifunction Hydraulic Crawler Excavator
| US$21,000.00-21,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CT45-8B
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.07m3--0.3m3
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
5500*1750*2455(L*W*H)
Ground Clearance350 mm
Operating Weight 4200 Kg
Tracking Force 34.1kn
Travel Speed:4.4/2.7 Km/H
Arm Digging Force:20.4kn
Boom Length 2560 mm
Arm Length 1450 mm
Engine Power 27.1kw@2.200rpm
Gradeability 30(58%)
Bucket Digging Force 23.7 Kn
Ground Pressure 36kpa
Swing Speed 11rpm
Flow/Pressure10.8L/Min@2200rpm/4.9MPa
Rear Swing Radius 1.600 mm
Tumbler Distance 1.710 mm
Max Dozer Lifting Height 255 mm
Max Dozer Cutting Depth 380 mm
Transport Package
Load 3 Units in One 40hq Container
Specification
CE, ISO9001
Trademark
CARTER
Origin
Shandong, China
HS Code
8429521200
Production Capacity
500 PCS/Year
Product Description
CT45-8B MINI EXCAVATOR1. Japan made Yanmar engine 4TNV88
2. Imported hydraulic components
3. On-line digital monitoring and control system
4. GPS satellite(optional)and remote control diagnose system(optional)
5. Rubber pedrail(optional, or steel pedrail), no damage to the ground of road
6. Full opened engine hood and easy up-forward-lifted cab
7. Cold&warm air conditioner.
| Engine | Travel System | ||||||||||
| Model | YANMAR 4TNV88 | Travel motors | KYB, Japan; | ||||||||
| Type | Direct injection, water cooled, natural intake | Support roller quantities | 2×5 | ||||||||
| Carrier roller quantities | 2×1 | ||||||||||
| No. of cylinder | 4 | Travel shoes | 2X35 | ||||||||
| Bore and stroke | 88X90(mm) | Travel speed | 2.7/4.4(km/h) | ||||||||
| Displacement | 2.19L | Drawbar pulling force | 35kN | ||||||||
| Power output | 25.2kw/2200rpm | Gradeability | 58%(300) | ||||||||
| Max. torque | 142N.m/1200rpm | Ground clearance | 350mm | ||||||||
| Hydraulic System | Cab & Electrical System | ||||||||||
| Pump | KYB, Japan | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat; LED display, Automatic monitoring, display | ||||||||
| Type | axial piston pump+ gear pump | ||||||||||
| Maximum flow Maximum displacement Working pressure | 2x45.7+36.9(L/min) 2*20.8+16.8(Cm³) 24.5Mpa | ||||||||||
| Max. discharge pressure | |||||||||||
| Boom, arm and bucket | 21.5 MPa | Voltage | 12V | ||||||||
| Travel circuit | 15.7 MPa | Batteries | 1x12V | ||||||||
| Swing circuit | 15.7 MPa | Battery capacity | 80Ah | ||||||||
| Control circuit | 3.9 MPa | Boom, Arm & Bucket | |||||||||
| Pilot control pump | Gear type | Boom cylinder | Φ90xΦ50xS552-L915 | ||||||||
| Main control valves | KYB, Japan | Arm cylinder | Φ85xΦ50xS580-L920 | ||||||||
| Oil cooler | Air cooled type | Bucket cylinder | Φ70xΦ45xS443-L745 | ||||||||
| Swing System | Refilling Capacity & lubrication | ||||||||||
| Swing motor | KYB, Japan | Fuel tank | 82 L | ||||||||
| Swing motor type | Axial-piston motor | Cooling system | 12 L | ||||||||
| Brake | Hydraulic oil released | Engine oil | 6L | ||||||||
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 59L Tank Oil Level | ||||||||
| Swing speed | 10 r/min | 85L Hydraulic System | |||||||||
| Bucket | |||||||||||
| Type | Backhoe bucket | ||||||||||
| Bucket capacity | 0.17m3 (SAE) | ||||||||||
| Bucket Capacity scope | 0.069-0.24m3 | ||||||||||
| Number of bucket teeth | 4 | ||||||||||
| Bucket width | 640 mm | ||||||||||
| Working Ranges | | ||||||||||
| Boom length | 2650m | ||||||||||
| A | Max. digging depth | 3405mm | |||||||||
| B | Max. dumping height | 3410mm | |||||||||
| C | Max. digging height | 5030mm | |||||||||
| D | Max. vertical digging depth | 2900mm | |||||||||
| F | Max. digging distance | 5530mm | |||||||||
| G | Max. digging reach at ground level | 5420mm | |||||||||
| H | Min swing radius of work equipment | 2185mm | |||||||||
| Digging Force (ISO6015) | |||||||||||
| Arm length | 1450mm | ||||||||||
| A | Bucket digging force | 23.7 KN | |||||||||
| B | Arm digging force | 21.6 KN | |||||||||
| Overall Dimensions Unit: mm | |||||||||||
| A | Overall length | 5500mm | I | Track grounding length | 1710mm | ||||||
| B | Ground contact length | 3353mm | J | Track length | 2190mm | ||||||
| C | Overall height(to top of boom) | 1861mm | K | Track gauge | 1400mm | ||||||
| D | Overall width | 1750mm | L | Track width | 1750mm | ||||||
| E | Overall height(to top of cab) | 2455mm | M | Track Shoe width | 350mm | ||||||
| F | Counter weight ground clearance | 585mm | O | Bonnet height | 1437mm | ||||||
| G | Min Ground clearance | 350mm | P | Revolving frame width | 1600mm | ||||||
| H | Tail swing radius | 1600mm | Q | Distance from swing center to tail | 1600mm | ||||||
| Operating Weight and Ground Pressure | |||||||||||
| Operating weight includes basic machine; | |||||||||||
| Operating weight | 4200 Kg | ||||||||||
| Ground pressure | 36 KPa | ||||||||||
