Product Description

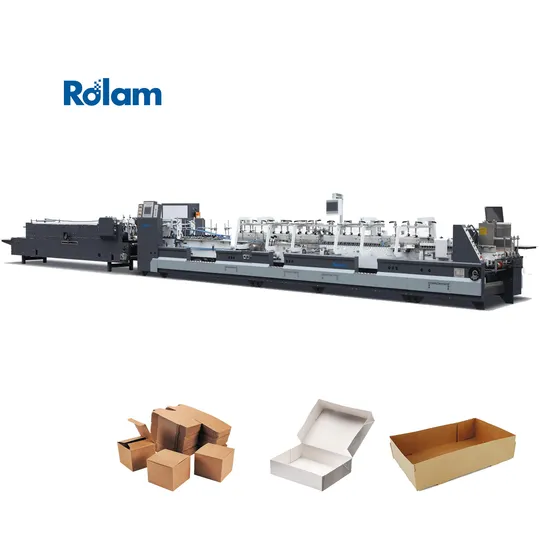

Why Choose Rolam Product Description Automatic High Speed 4/6 Corner Crash Lock Bottom Folder Gluer(GK-GS)
GS series folding gluing machine is multifunction high speed machine,imported electronic components, adopt synchronous belt transmission and electronic continuously variable speeder ,feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and perfectly combing the requirements of auto packaging together. (in case of any special function required, we can design according to the customer's intention.)
·Fast job changeover
·Driven by ribbed V belt
·Multi-type work capabilities
·With integrated bump & turn allows to turn cartons 90º and its alignment
·Extra length crash lock bottom section
·Extra folding & closing section with collapsible central carrier
·Suitable for Straight line, lock bottom, 4 & 6 corner cartons and more
Product Parameters

GS TECHNICAL PARAMETERS
MODEL	650	800	1100
Paper Material	Cardboard 210-800 GSM,A/B/E Flute
Max Speed	400 M/Min
Max Thickness of Folded Box	12 MM
Way of Folding	Fold 1 and fold 3 are 180°and 135°, fold 2 and fold 4 are 180°
Power Supply	3P 380V 50HZ
Blank Width	650 MM	800 MM	1100 MM
Length X Width X Height	13 X 1.3 X 1.3M	15 X 1.5 X 1.3M	15 X 1.8 X 1.3M
Net Weight	5.5 T	6.5 T	7.5 T
Total Power	23 KW	30 KW	30 KW

Samples

Straight Line Box
Model	650 Type	800 Type	1100 Type
Way of Folding	Two Carriers	Two Carriers	Two /Three Carriers
B+C+D+E	110-650	110-800	110/200-1100
E (Min)	30	30	30
F	50-800	50-800	50-800
G (Max)	800	800	800

Crash Lock Bottom Box
Model	650 Type	800 Type	1100 Type
Way of Folding	Two Carriers	Two Carriers	Two /Three Carriers
B+C+D+E	130-550	130-700	130/280-1000
E (Min)	30	30	30
F	50-800	50-800	50-800
G (Max)	800	800	800
H (Min)	25	25	25
L	30-100	30-100	30-100

4 Corners Box
Model	650 Type	800 Type	1100 Type
Way of Folding	Two Carriers	Two Carriers	Two /Three Carriers
A+B+C	160-450	160-600	260-900
B (Min)	90	90	90
F	70-600	70-600	70-600
G (Max)	800	800	800
H (Min)	25	25	25
L	30-100	30-100	30-100

6 Corners Box
Model	650Type	800 Type	1100 Type
Way of Folding	Two Carriers	Two Carriers	Two /Three Carriers
A+B+C+D+E	260-450	260-600	360/410-900
B (Min)	80	80	80
C (Min)	30	30	30
F	70-600	70-600	70-600
G (Max)	800	800	800
H (Min)	25	25	25
L	30-100	30-100	30-100

Feeding Section
·Driven by variable frequency motor and synchronizes with the main engine
·Equipped with three pieces feeding knife to adjust the asymmetrical lengths
·Rail set by seven pieces 30mm thickened feeding belt and 10mm metal board
·Operators can operate feeder switch in any regional
·Vibration device helps machine consecutive and automatic feeding
·Can stack 400MM height paper board
Aligner Section
·Correcting the paper from feeding
·Pressing drive pressure is adjustable to fit the paper thickness
Pre-folding Section
·First folding line 180°, third folding line 135° pre-folding
Crash Lock Bottom Section
·Sectional-type upper Belt board with special design.
Lower Gluing Tank
·Large volume.
·Easy to remove and clean
·Electronic upper gluing system by guns
4/ 6-corner Device
·Motorized and untimed electronic back folding system
·Intelligent servo motor technology
Folding and Closing Section
·Collapsible central carrier by pneumatic system
·Belt speed can be adjusted separately and correct the way of box running
Trombone Section
·Belt can be adjusted separately.
·Equipped with electronic counting device and kicking paper device
·Equipped with feeding paper inspection device.
Box Squaring
·Continuously and automatically box collection
Conveyor
·Equipped with a special additional sponge belt for pressing the valley part of the case.
·The upper part can be moved back and forth to allow for different case lengths.
Spraying System
·Equipped with three guns
·Convenient in the production of 4/6 corner box and various special-shaped box
·Gluing quickly and accurately sizing
Company Profile
New Luolan Machinery,
The Leader of Gluing and Folding Field.
Zhejiang New Luolan Machinery Co., Ltd, is established in 2006.
As a professional manufacturer, we not only do manufacturing, but also researching, marketing and offering after sales service. We supply quality equipment, effective and convenient solutions for cardboard box and corrugated box folding industry, printing and packaging industry. Gluing folding machine and window patching machine which produced by Zhejiang New Luolan Machinery Co., Ltd have approved by the National Quality Supervision and inspection
New Luolan Machinery has strong technology for Products research, with all-sided testing program. As a National High-tech enterprise, Luolan has got a number of patent and The Gluing Folding equipment have passed the test by National Quality Supervision Center.
New Luolan closely grasps the trend of industrial development planning, selects industrial intelligent production 4.0.New Luolan will provide the best quality and most competitive Gluing Folding equipment to all of our clients.
Packaging & Shipping
Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries, Also some are according to the customer's requirement.
FAQ Q: What is the machine warranty?
A: One year.
Q: What is the production time while placing order?
A: About 35 days
Q: What is the delivery time?
A: Within 30 days after get the payment.
Q: How about after-sales service process?
A: When your machine has problem, contact your sales and we will solve your problem soon as possible.
Q: Do you have stock product to sell?
A: Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
