China Manufacturer Hongyuan Powder Coating Oven with Ss Steel Electric Heaters

Product Description

Product Description
The powder coating process involves three basic steps:
Part preparation or the pre-treatment The powder application Curing The powder coating process involves the following equipment:
1. Part preparation processes and equipment
2. powder coating spray gun(manually or automatically)
3. powder coating spray booth(manually or automatically)
4. powder coating curing oven(gas, diesel, or electric heating energy for option)
5. powder coating production line(manually or automatically)
Quick details of the Hongyuan powder coating curing oven with electric heaters for powder spray application
Outer size(D*W*H): 3800*2300*2400mm
Inner Clear size(D*W*H): 3600*2000*2000mm
heating power: Electric heaters.
entry door: two end-door for go through easily and improving the productivity.
Advantages of the Hongyuan powder coating curing oven with electric heaters for powder spray application
factory producer; Italy Riello burner;
10years producing experience;
rich export experience;
in stock for part; fast shipment.
Function of the Hongyuan powder coating curing oven with electric heaters for powder spray application
The powder coating curing oven is mainly for curing the object coated by powders, which is the most important and vital part during the powder coating process.
Features of the Hongyuan powder coating curing oven with electric heaters for powder spray application
1. Walls and roof comprised of galvanised steel plates with high-density Rockwool insulation at 100mm thick.
2. Our advanced design and high quality manufacturing process leads to remarkably low running costs (Especially for the gas consumption).
3. Powerful centrifugal fans and our patented high volume internal duct system allow highly efficient running and give an even heat throughout.
4. Our ovens are controlled by a famous brand components with a simple control panel. This allows accurate cure timing and helps improve fuel efficiency.
5. High quality burners - tried and tested over many years
6. Our manufacturing plant produces heavy-duty ovens, designed and built to last.
7. Flat packed for easy transportation and installation.
8. Each part of oven is checked before shipping.
9. Fully guaranteed &Service contracts available
Product Parameters
Parameters of the Hongyuan powder coating curing oven with electric heaters for powder spray application

Model	HY-POE38002
Outer size(mm) D*W*H	3800*2300*2400
Inner Clear size(mm) D*W*H	3600*2000*2000
Cabin system	100mm thickness rockwool sandwich panel.
Entry/off door	two-end door, one for in and one for out.
Power supply	Stainless steel electric heater.
Voltage	110V/220V/380V/450V
Frequency	50-60Hz
Warm-up time	15 min. (180-220° C)
Temp Homogeneity	< ± 3°C if 185°C
Temperature stability	< ± 1°C
Temperature max.	230° C
Air circulation	N/A
Band of burner	Italy Riello for gas and diesel burner.
Warranty	12 months
Transport	By sea
Optional	Size could be custom-made.
Transfer trolley	excluded
Related products	Powder coating gun, powder coating machine, powder coating spray booth, powder coating plant, powder coating spray line

Other size options for choice	Model	size
	HY-PO1900(electric)	cabin Outer size(D*W*H): 1900L*2300W*2400Hmm Inner Clear size(D*W*H): 1600L*2000W*2000Hmm
	HY-PO2850(electric)	cabin Outer size(D*W*H): 2850L*2300W*2400Hmm Inner Clear size(D*W*H): 2550L*2000W*2000Hmm
	HY-PO3800	cabin Outer size(D*W*H): 3800L*2300W*2400Hmm Inner Clear size(D*W*H): 3500L*2000W*2000Hmm
	HY-PO4750	cabin Outer size(D*W*H): 4750L*2300W*2400Hmm Inner Clear size(D*W*H): 4450L*2000W*2000Hmm
	HY-PO5700	cabin Outer size(D*W*H): 5700L*2300W*2400Hmm Inner Clear size(D*W*H): 5400L*2000W*2000Hmm
	HY-PO6650	cabin Outer size(D*W*H): 6650L*2300W*2400Hmm Inner Clear size(D*W*H): 6350L*2000W*2000Hmm
	HY-PO7600	cabin Outer size(D*W*H): 7600L*2300W*2400Hmm Inner Clear size(D*W*H): 7300L*2000W*2000Hmm
	HY-PO8550	cabin Outer size(D*W*H): 8550L*2300W*2400Hmm Inner Clear size(D*W*H): 8250L*2000W*2000Hmm

Related products of our Hongyuan powder coating curing oven with electric heaters for powder spray application
powder coating spray booth, powder coating spray machine, powder coating plant, powder coating spray production line, powder coating spray gun and so on.
Detailed Photos

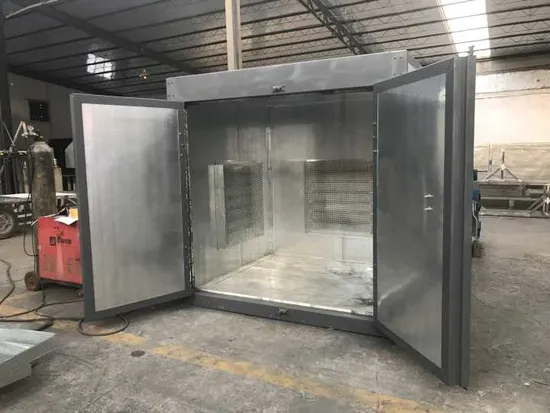

Parts show of Hongyuan powder coating curing oven with electric heaters for powder spray application
Production Equipment
Production area and equipment for Hongyuan powder coating curing oven with electric heaters for powder spray application
Packaging & Shipping
Package Show of Hongyuan powder coating curing oven with electric heaters for powder spray application
Company Profile
Certificate of our product and company
Our Team
Our Team is serving you at any time
Contact Us
Send us inquiry for more info about Hongyuan powder coating curing oven with electric heaters for powder spray application
Your inquiry will be highly appreciated! Contact Us Contact person: Lisa Lee
Manufacturer: Zouping Hongyuan (Eco-Friendly) Mechanical Technology Co. Ltd.

Without communication, there is no relationship;
Without respect, there is no love;
Without trust, there is no reason to continue!
Wish the best to your family!

FAQ
Q 1: Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department. So you can get best price from us.
Q 2: Where is your company located? How can I visit there?
A:Our company is located in Binzhou, near JINAN airport and ZIBO train station. All clients, from home and abroad, are warmly welcomed to visit us.
Q 3: What is your terms of delivery?
A: Normally our quotation is under FOB Qingdao, but we also accept EXW, FOB(other seaports), CFR, CIF, DDU and so on.
Q 4: What is your terms of payment?
A: By T/T, 40% as deposit for production, and 60% balance before delivery. We'll show you the photos of the products and packages before you pay the balance. Other payment terms are as negotiated. For small amount order, we also accept WU, Paypal, MoneyGram and so on.
Q 5: What is your terms of packing?
A: Generally, we pack our goods by thicker bubble paper, some of them are packed by carton, and wooden box as required.
Q 6: How about your delivery time?
A: Generally, the goods will be ready within 7 to 10 days after receiving deposit for standard goods. Some kinds are even in stock. If your voltage is different from 380V/3PH/50Hz, the delivery time will be a little longer for custom-made motors or electric components.
Q 7: Can you produce according to the technical drawings?
A: Yes, we can produce by your technical drawings or requirements. We also can make drawings for you.
Q 8: How do you make our business long-term and good relationship?
A1. We keep good quality and competitive price to ensure our customers benefit;
A2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q 9: How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material sources, our products are excellent in performance and craftsmanship.
Why Choose Us
1.More than 10-year manufacturing experience involved in this industry, and 10-year rich export experience
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable
6.Professional pre-sales and after-sales service
