3D Carving Polyfoam Foam Cutter CNC EPS Router Machine for Automobile Mold Industry

3D Carving Polyfoam Foam Cutter CNC EPS Router Machine for Automobile Mold Industry

US$10,000.00-20,000.00 1 SET (MOQ)

Basic Info.

Model NO.
LE-1325/1530/2030-4A/5A
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
220V / 380V
Working Area
1300X2500X1000mm
Machine Structure
Steel Tube Welded
Spindle
6kw
Inverter
Fuling
Driving System
AC Servo
Transmission
Gear Rack for Xy and Tbi Ball Screw for Z Axis
Table
Vacuum and T-Slot Aluminum Table
Control System
DSP/Mach3/Syntec/Lnc/Nc Studio
Transport Package
Wooden Box / Container
Specification
4000x2280x2000mm
Trademark
LEEDER CNC
Origin
China
HS Code
8465990000
Production Capacity
50 Sets/Month

Packaging & Delivery

Package Size
400.00cm * 225.00cm * 200.00cm
Package Gross Weight
2000.000kg

Product Description

Feature
# Famous brand DEMAS 5 axis head, specially for 4D 5D work, the C axis can rotate +/- 245 degree, the A axis can rotate +/- 120 degree;
# Main parts all from worldwide famous suppliers, such as Italy HITECO spindle, Taiwan Syntec control system, Syntec / Japanese Yaskawa servo motors, Taiwan Shimpo reducer, etc. To ensure the stable performance with high quality.
# Can make different surface carving by such 5 axis CNC, arc-surface milling, bend surface machining for 4D 5D jobs, like special shaped arts, bended doors or cabinets.
# This 5 axis cnc router can work on foam, MDF, Acrylic, wood, and the soft metal etc.
Product Parameters

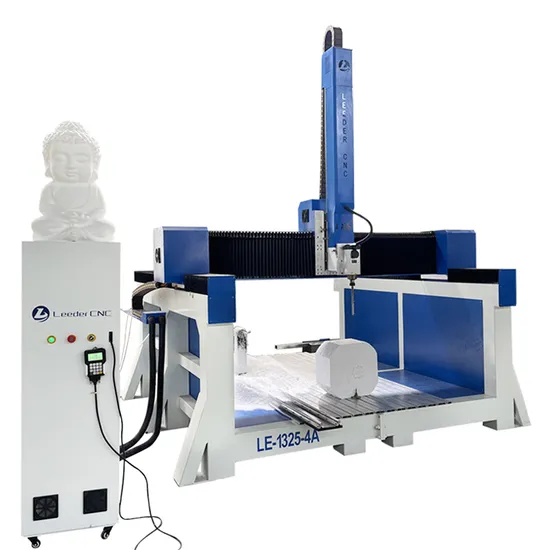

Model LE-1325-4A
Working area 1300 x 2500 x 1000mm
Spindle 6KW
Spindle speed 18000 rpm
Inverter Fuling
Control system DSP / MACH3 / Syntec / NC STUDIO / LNC
Driving system AC Servo
Table T-slot aluminum /table
Transmission system XY axis helical gear rack and Z axis Taiwan TBI ball screw
Guide rails Taiwan high accuracy HIWIN/PMI square rails
Working accuracy ±0.05mm/m
Travelling speed 0 - 40m/min
Working speed 0 - 20m/min

Packaging & Shipping
Inner package: Stretch film and and water-proof film.
Outside package: Standard export plywood case / Container loading.
By sea/train/air, we can do EXW/FOB/CFR/DDU/DDP trading terms.
Payment
T/T 50% in advance and we start to manufacture this machine after receiving the payment.T/T 50% balance payment before shipping, and we will send you our machine pictures and testing videos to confirm. Then arrange the packing and shipping.

After Sales Service
Three years warranty. 7/24 after sale service. Customer will be able to get free training advice towards our machine in our factory. Can also get free suggestion, consultation, technical support and service by Email/Tel/WhatsApp/Skype, etc. Any question or problem, show us pictures or videos, and then we will try our best to help you as soon as possible.Free parts will be provided if broken not human reason within warranty.Engineer available to overseas service.
FAQ
Q: Which one is suitable for me?A: Tell us below information1) Max size of your material, to choose most suitable model.2) Maximum cutting thickness, materials to choose suitable power.3) Industry information and sample photos, we will recommend you best model based on our many years experience in this field.Q: How to install and run the machine?A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Most customers can learn by themselves.Q: How can I do if the machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We can provide WeChat/Whatsapp/Email/Phone, will response within 24 hours as quick as we can to solve it for you, till to solving all questions. Q: What's your MOQ?A: 1 set, we will give you support with our heart and soul.
