Solid Wood CNC Cutting Machine Wood CNC Router Curve Cutter Band Saw Milling Machinery
| US$17,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WARDWIN
Power Type
Electric
Layout
Horizontal
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE
Voltage
3 Phase 380V
Spindle Motor
2*7.5kw
Spindle Speed
18000 R/Min
Max Material Thickness
130 mm
HS Code
84659900
Production Capacity
100/Month
Product Description
| Product Description |

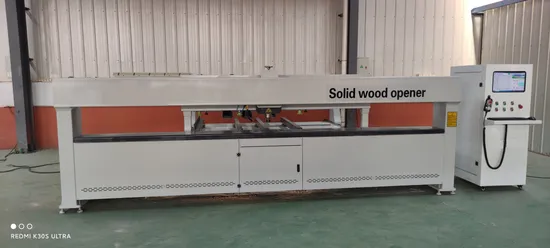

Solid Wood CNC Cutting Machine
This product is new CNC cutting equipment developed for solid wood cutting. It can replace the traditional band saw, which has the problem of dead angle, turning and surface glossiness. It breaks the traditional solid wood cutting process, such as line drawing, manual cutting, Gong milling, reduces the labor cost and improve production efficiency! This product is different from the traditional band saw to realize numerical control, supporting DXF format, and equipped with the functions of typesetting, cutting at any angle and easy operation. Besides,
ordinary workers can operate independently in half a day.
| Product Specification |
| Specifications | CNC-1500A | CNC-2000A | CNC-2500A |
| Max Material Length | 1500mm | 2000mm | 2500mm |
| Max Material Width | 1300mm | 1300mm | 1300mm |
| Max Material Thickness | 0-130mm(8mm) | 0-130mm(8mm) | 0-130mm(8mm) |
| Idle Speed | 0-20m/min | 0-20m/min | 0-20m/min |
| Processing Speed | 0-10m/min | 0-10m/min | 0-10m/min |
| Spindle Power | 2*7.5kw | 2*7.5kw | 2*7.5kw |
| Spindle Speed | 0-18000r/min | 0-18000r/min | 0-18000r/min |
| Detail Photos |
| Factory Details |
