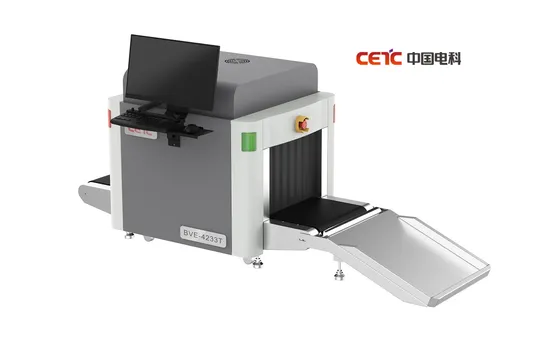

X-ray Mail Scanner 4233 with Touch Screen

X-ray Mail Scanner 4233 with Touch Screen

US$1.00 1 Piece (MOQ)

Basic Info.

Model NO.
BVE-4233T
Portable
Non Portable
Form
Flatbed
Application
Security Check, Industrial
Type
Conveying X-ray Detector
Certification
CE, ISO
Customized
Customized
Alarm Form
Display Alarm
Transport Package
Plywood Pallet
Specification
Pallet Size: 1850*900*1530mm
Trademark
CETC
Origin
Shanghai
HS Code
9022191090
Production Capacity
1000PCS/Month

Product Description

Product DescriptionX-ray mail Scanner 4233 with Touch Screen BVE-4233T with touch creen operaiton is a compact low conveyor belt x-ray security inspection system with tunnel size of 42 cm width by 33 cm height. It permits the inspection of the baggage from small parcels and packages to handbags without any loss of X-ray image quality.
Operator training courses offered by CETC have an excellent reputation all over the world and they are carried out individually for each customer.
As the world leading supplier of x-ray inspection systems, CETC provides an efficient, global service network working fast and reliably.
BVE-5030 offers all the advantages of CETC technology, including high-quality imaging, the industry's superior user-friendly operator interface and networking capabilities. The state-of-art imaging technology, intelligent dangerous objects assist detection function is consistently fast, accurate, and efficient screening and detection of weapons, narcotics, explosives, and other threats and contraband goods.• Safety: World leading safety protection technology, complying all international standards for health and safety of operators and the public.
• C-AD: Automatically detection and alarm of a wide range of explosives, narcotics in real time during the scanning process by clearly highlighting potential threats on the X-ray image.
• C-TIP: Threat Image Projection function with strong image library, providing a powerful solution for operator performance monitoring and training.
• Exclusive CETC Professional Material Discrimination Function: with 8 selectable imaging background colors for users.
• Customized Service provided: meeting various end users' requirements for special software and hardware expectations.
• High image quality with wire resolution of 40AWG and superior steel penetration ability.
Product Parameters
Basic Parameters
Tunnel size 42(W) x 33(H) [cm]
Conveyor speed 0.2 m/s
Resolution 40 AWG
Film safety ISO1600 (33DIN)
Display monitor One set 22'' LED; other size optional (touch screen)
X-Ray Generator
Beam Direction From Top
Detector L shape detector
CertificationsWe have CE,ISO,FCC,FDA, Radiation Safety Permit, AAA Credit Level Enterprise, Computer Software Copyright Registration Certificate, Hardware Design Patent, Health Test Reports etc..
Company Profile Beijing Vacuum Electronic Technology Co., Ltd. (BVE) was founded in 1993, affiliated to 12th research institute of CETC (China Electronics Technology Group Corporation). As the earliest institute researching x-ray device and micro-wave device, we have been researching and developing many core parts and devices like: China first bi-focus x-ray tube, first 10MeV linear accelerator. CETC is one of the fortune Global 500. BVE headquarter locates in Beijing, with manufacturing base in Zhejiang and global trade, marketing office in Shanghai. With near 30 years development, the company achieved great success in electronic core parts like security checking use x-ray generator tube, linear ion accelerator, industrial non-destructive checking x-ray tube, medical DR imaging x ray tube etc. researching, developing and manufacturing. We realized high-end security system core parts self-produced, which makes us different in the security industry. Having been participating into about 20 national level critical science researches & tasks including China manned space flight project, BVE successfully innovated 8 first demo critical technology equipment, participated into making (revising) 6 national and industrial standards including national vehicle x-ray security inspection system industry technical requirements in 2019 and achieved 4 national defence use and civil use patents.BVE have been concentrating on intelligent security technology development and have a dedicated R&D team, manufacturing base as well as professional sales and after sales team with many years' field experience. Combining the vacuum and microwave technology, BVE's main security business covers container scanner, various sized vehicle scanner, x-ray baggage scanner, human body security checking equipment as well as explosives, narcotics & liquid detector etc.BVE have been providing series safeguarding services to many big events and clients, like Olympc Games, World Expo, 70th Anniversary National Day Militry Parade 2019 etc. The security products, services as well as system security solutions have been accepted in many fields like Customs, Aviation, Subway, Railway, Highway, Post Logistics, Prisons, Courts, Big Events and so on. Our superior products' performance and excellent team servicing earned high recognition and praise from the end users.
The company always insists on Customer First and aims to be the industry leader creating intelligent security new era with consistent innovation and Integration. We would like to promote the development of technology& industry together with worldwide partners and meet the expectation of the clients with our state-of-art products and best intelligent security solutions.
CETC-Creating Intelligent Security Era! Applications & SolutionX-ray mail Scanner 4233 with Touch Screen X-ray mail Scanner 4233 with Touch Screen BVE-4233T is an advanced low conveyor belt design x-ray system for screening handbag, regular baggage, easy to operate, specially designed to meet the needs and applications of Airports, Customs, Public transportation operations, Parcel services, Embassy, Government Office, Militry Base, Prison, Amy or wherever high security and total security solution is required.
Performance Cases
• CETC Group supporting facilities: Hikvision ,CETC 38th institute, Lianhai Chuangzhi ,CETC 3rd institute;
• Rail transit: Shanghai Road Bureau , Changchun Road Bureau, Kunming Road Bureau, Chengdu Road Bureau
• National key institutions : The Eighth Bureau of the Ministry of Public Security, Xianyang Airport, Embassy, etc.;
• Road traffic: Jiangsu Transportation , Henan transportation, Xinjiang transportation, Anhui transportation, Shanxi transportation and Yunan transportation;
• International export: Sri Lanka, India, Bangladesh, Turkey, Government departments, airports and ports in the Russian-speaking area and Africa;
• Public Security organs: Xinjiang Public Security Department , Corps prison, Yuzhou Prison, Xinjiang Public Security Checkpoint.
• Other: G20 summit , China International Import Expo, Militry parade, Geographic information conference, etc.
Our AdvantagesWith near 30 years development, the company achieved great success in electronic core parts like security checking use x-ray generator tube, linear ion accelerator, industrial non-destructive checking x-ray tube, medical DR imaging x ray tube etc. researching, developing and manufacturing.
CETC Beijing Vacuum Elctronic Technology Co.,Ltd have been concentrating on intelligent security technology development and have a dedicated R&D team, manufacturing base as well as professional sales and after sales team with many years'field experience. Combining the vacuum and microwave technology, BVE's main security business covers container scanner, various sized vehicle scanner, x-ray baggage scanner, human body security checking equipment as well as explosives, narcotics & liquid detector etc.
FAQ1.How many series products do you have?
We have 8 security product series:X RAY Baggage Scanner (Hot-sale product)Vehicle inspection system (Hot-sale product)Container Scanner Hand Held Metal Detector Walk Through Metal Detector Explosive and narcotics detection equipmentAnti-explosion containerUnder-vehicle inspection equipment2.How long is the lead time?
Normal order: within 2 weeks after receiving full payment.
Delivery time depends on models and quantity.
3.Does your company could provide customzied services?
Yes, we can provied the customzied services. We have the professional technology team and basic on customer requirements to design csutomzied the products.
We can provide OEM, ODM and SKD services.
4. What's your min order quantity?
Different items no different quantity. We are available for one peices for sample machine.
5. How long is your warranty?
Free warranty 1 year.
Paid warranty 2~10 years.
6.How about your supply capacity?
We have our own big factory as our total security solutions manufacturing base. Could be able to handling various projects at clients' need.
7.Do you have any big projects that you have done?
By now, CETC have made great success in many different fields, hereby pls. find a small part of them:
Metro Systems: Pakistan Lahore Orange Line, Harbin Metro, Ningbo Metro, Wuhan Metro etc.
Railway/Train Applications: Zhengzhou Railway Bureau, Wuhan Railway Bureau, Shanghai Railway Bureau etc.
Big Event: CIIE(CHINA International Import Exhibition), IGC(International Geographical Congress), World Expo etc.
Government Offices: Turkish government offices, Bangladesh government offices, UNDP etc...
8. What is your after-sales service?
After-sales service is one of our key concern. CETC are providing our high-quality service to our clients aiming to meet and surpass the clients' expectations.
A: Installation service: CETC could provide installation service after our equipment reached the site at clients' need. Our charges will be reasonable and assuring our CETC systems working properly after installation and do commissioning of our systems, provided there are no system damages caused during improper transportation handling or man-made harm.
B: Training service: CETC could provide training service to both our partners and end users at clients' need. Our charges will be reasonable and could provide test as well as training certificate when you need.
C: Debugging and Maintenance service: CETC could provide maintenance service to our clients. Our charges will be reasonable and could assure to issue a maintenance report to the user after maintenance work.
We also have several methods of after-sales service available for end user's choice according to the client's preference:
A. Site visit after-sales service: Our engineer could fly to the site and do the after-sales as well as maintenance service with reasonable cost.
B. On-line technical analysis and support: We could do on-line technical analysis to the end users' requirements and guide the technician at site to do the repair or maintenance accordingly.
C. Telephone technical guidance: We provide technical guidance service to our clients through telephone. 24 hours service telephone is available.\
9. What is your payment terms?
Normally T/T 30% in advance, 70% before shipment.
For some big projects, also L/C, D/P or D/A.
10. How many ways of transportation and what is your products's package?
We have Ocean freight, Air freight, Land transportation.
For package, we usually use the composite wood pallet, vacuum bag and so on.
We have professional logistics team and can provide best service and price.
