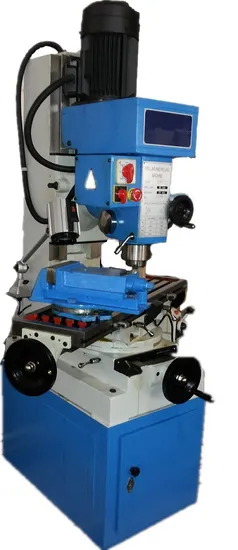

ZX50C Vertical Drilling and Milling Machine with Swivel Head
| US$1,700.00-1,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX50C
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
1000X240mm
Spindle Travel
120mm
Drilling Capacity
50mm
Voltage
1.5kw
Max Drilling Dia
50mm
Transport Package
Standard Plywood Package
Specification
CE
Trademark
WMTCNC or customized logo
Origin
Anhui
HS Code
84592900
Production Capacity
50 Sets/ Month
Product Description
Features:1.Small and flexible, economic.
2.Multi-functions of drilling, reaming, tapping, boring, grinding and milling.
3.Processing small parts and Repairing warehouse
4.gear drive, Mechanical feed
5.Swivel table 45 degree
Specification:
| specifications | ZX50C |
| Max.drilling dia. | 50mm |
| Max. end milling capacity | 100mm |
| Max. face milling capacity | 32mm |
| Spindle taper | MT4/ISO30 |
| Spindle speeds range | (8step)115-1750rpm |
| Spindle travel | 120mm |
| Max.distance from spindle nose to worktable | 380mm |
| Dia. of column | square |
| Table size | 1000×240mm |
| Table travel | 600×230x380mm |
| Main motor power | 1.5kw |
| N.W./G.W. | 600kg |
| Packing size(mm)1set | 1050×1050×1850 |
Standard accessories:
Drill chuck and arbor
working light
reduction sleeve (3 sets: 4/3.3/2 )
machine vice 160mm, spindle arbor
operation manual
wrenches and tools
Optional accessories:
DRO 2 axis
DRO 3 axis
Universal dividing head
58 pcs clamping kits
Rotary table
