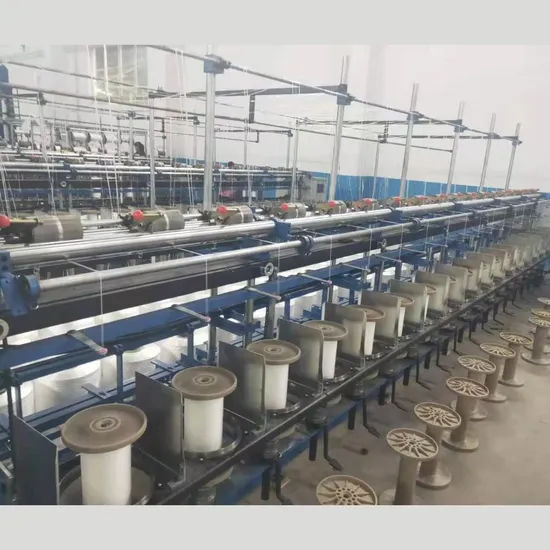

Manufacturer 16 Spindles Yarn Twisting Machine for Twine

Manufacturer 16 Spindles Yarn Twisting Machine for Twine

US$9,500.00
1-2 Pieces
US$8,000.00
3+ Pieces

Basic Info.

Model NO.
ASK727
Spinning Method
Doubling and Twisting
Processing Material
Cotton, Polyester, Wool
Producing Process
Chemical Fiber Spinning Equipment
Certification
CE, RoHS, ISO9001: 2000, REACH
Warranty
12 Months
Customized
Customized
Condition
New
After-sales Service
1 Year
Operation Form
Double Sides
Quantity of Spindle
100(Can Increase or Decrease)
Speed of Spindle
2400-4000rpm
Model of Spindle
224
Diameter of Traveller Ring
150mm/ 170mm
Twisting Direction
Z or S Z or S
Scope of Twist
100-600turn/M
Lifting Movement of Traveller Ring
310
Diameter of Roller(mm)
Dia 51mm
Overall Diameters(M)
13.5X1.13X2.15m
Total Weight(Kg)
7500
Transport Package
Wooden Package
Specification
13.5x1.13x2.15m
Trademark
JTFTEX
Origin
China
HS Code
8445300000
Production Capacity
1500set/Year

Packaging & Delivery

Package Size
196.00cm * 250.00cm * 160.00cm
Package Gross Weight
330.000kg

Product Description

Product Description
Description:
This machine is high effective twister and has set the mechanism of twisting direction changing, anti-conversing turning device for roller, safe device and lifting mechanism with planetry direction exhanging.
Two procedures of twine can be finished in one time. Meanwhile it can be made in the form of tower cylinder and has solved the different problem of backwinding in thread making and wool spinning, it's new generation twister.
Suitable range:
21 counts 5 strands- 60strands yarn, 200D-6000D fiber, 36tex 6-36strands PE twisting or twine.
Mian Data:
1.For fiber,yarn,twine,thread,string,rope first twister and re twister.
2. Size: 0.5mm-6mm
3. Working mission: for twisting single yarn, two ply yarn, three ply yarn,multi ply.
4. For twister fiber, yarn, thread, string, twine, rope.
5. For first-twisting, re-twister ,doubing,twister.
It is for twisting many ply yarn into one ply. It is good for different size yarn.
The product has wide application scopes, modern design, big take up amount
Advantages:
1.Wide applied and big winding capacity and strong suitability to materialsetc.
2.It takes small space, simple structure, easy to operate and maintain.
3.High efficiency and output machine for twisting and stranding with multi spindles.
4.Custom technical support-Strong technical team and full experience for costuming the machine as client's production request.
5.Adopt count storage devices, and accurately record the output of the machine, make production more easy and efficient.
6.You can add PLC control to operate the machine easily.
7. Easy technology adjust device, make your production more easy and fast.
8.Twisting uniform,Good stability.Strong stability, low energy consumption.
Product parameter:
Spindle gauge(mm) 227mm
Quantity of spindles 100(can increase or decrease suitably)
Speed(rpm) 400-4000rpm
Diameter of ring traveller(mm) Φ150-170
Scope of Twist 100-600 turns/m
Lifting movement of traveller ring(mm) 310
Diameter of motor(KW) 15KW
Twisting direction S or Z
Operation form Double sides
Total weight(kg) 7500kgs

Detailed Photos

Product Application
Product Categories

Company Profile

Certifications

Packaging & Shipping

FAQ
Q: How's the after-sale service? We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount. Q: How about the quality?
We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q: Product /Quality Guarantee and After Sale Service?
1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
Q: One-stop Service:
We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
Q: Certification?
JingTian is an ISO9001, ISO14001 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. JINGTIAN will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
