Saving Labour Disc Harrow for 30 HP Tractor

Saving Labour Disc Harrow for 30 HP Tractor

US$10,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
910-4.0
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Color
Blue
Product Name
910 Disc Harrow
Width
4.0m
Matched Power
200-260HP
Weight
5000kg
Disc Diameter
36′′x12mm
Spacer
495mm
Transport Package
Nude Packig in Standard 20 Feet Hq Container
Origin
Jiangsu Xuzhou
HS Code
8432210000
Production Capacity
2000set

Product Description


Product Description

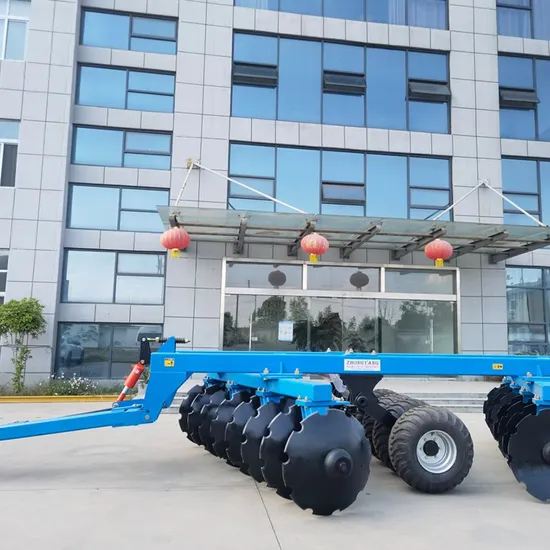

Lishi 910 Extra-heavy-duty disc harrow Product description
Lishi910 extra-heavy-duty disc harrow is a new-type extra-heavy-duty wide disc harrow recently developed by our company.Its main body is made of high-strength alloy steel,with sturdy structure and good designing, equipped with four sets of 10-15 tires for transport.The φ910*12mm heavy duty blade is used on this procuct for the first time in china,which makes the maxium working depth up to 30cm.This product is mainly used for land plowing and preparation before seeding and stubble cleaning after harvest in the sugar cane fields.
Product characteristics
Matching power:200-300 horsepower tractor,working width 3m-5m
It is used for stubble cleaning and land prepatation before seeding in higher stub lands such as sugar cane fields.
With the maximum working depth up to 30cm, it can replace the plough to perfrm the first cultivation on the light soil and cultivated land.
Two-row notched blades,with the diameter of 910mm, thickness of 12mm
High-strength steel with sturdy structure.
Double-row tapered roller bearing with four seals utilizedmakes the service life 4-5times longer than that of the ordinary agricultural bearings.
Technical parameter

Item

unit


Mode
910-3.0 910-4.0 910-5.0
Disc No. pcs 12 16 20
Working wideth mm 3000 4000 5000
Space mm 495 495 495

Disc Size

mm
36''χ12
36''χ12

36''χ12

Approx. net wetgth
kg 4760 5660 6750
Matched power hp 185-240 240-280 >300


Company Profile

Xuzhou Zhongyang Agri Machinery Co., Ltd. Was founded in March 2018. It ia new company of Xuzhou
Kaicheng Machinery Co., Ltd. As a professional manufacturer and trading enterprise. We have about 70
employees, and our core industries include agricultural machinery disc harrows, disc ploughs, combined land
preparation machines, disc blades, trailers, planters and tractors. Agricultural machinery disc harrows working
wide include 1.8m to 7.5m heavy duty disc harrows, extra heavy duty disc harrow 710 series and 910 series,
middle duty disc harrows working width from 2.0m to 8m, light duty disc harrow from 3.6m to 7m, The matched
power from 30HP to 530HP. We also provide all kinds of implements for farms. We are located in Chinese
construction core industry base. Our products have the advantages of low cost and good quality, and are well
received by customers at home and abroad. More than 15 years of experiences, professional and constantly
innovation, professional producing line, every serious careful assembly workers, we ensure every product that
we produce has very reliable quality and stability. Now, you can see "Lishi brand agriculture working in Australia,
Africa, Europe, South America, central Asia more than 40 countries. Sincerely looking forward to provide you with
the most comprehensive field solutions and the most perfect products and services in the most crucial time.

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
