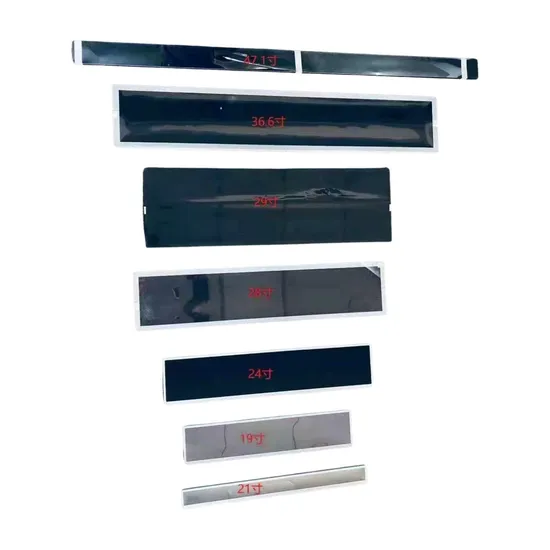

Factory Direct Sales 47.1/36.6/29/28/24/21/19 Inch Long IPS LCD Display Module 3840*160 Resolution Display Panel

Product Description

DV471FBM-N10 is a color active matrix TFT LCD MDL using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This MDL has a 47.1 inch diagonally measured active area with UHD resolutions (3840 horizontal by 160 vertical pixel array). Each pixel is divided into RED, BLUE ,GREEN,dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD MDL panel is adapted for a low reflection and higher color type.

Parameter	Specification	Unit	Remarks
Active area	1196.16(H) × 49.84 (V)	mm
Number of pixels	3840(H) × 160(V)	pixels	1Pixel=(R+G+B) Dot
Pixel pitch	311.5(H) × 311.5(V)	um	R/G:103.83, B:103.84
Pixel arrangement	Pixels RGB Vertical stripe
Display colors	16.7M	colors	8bits True
Display mode	Normally Black
Dimensional outline	1209(H)*62.9(V)*14.5(B)	mm	Detail refer to drawing
Weight	TBD	g
Power Consumption	17W	Watt	Estimate: 6.5W for P anel, 10.5W for BLU
Bezel width (L/R/U/D)	5.4/5.4/5.2/6.8	mm
Surface Treatment	Haze 25%
Back-light	Horizontal arranged, 2-LED Lighting Bar type

TFT LCD Display
Achieve micron level ultra-fine
circuit, stable function. Viewing Angle
Using professional tempered glass, the surface strength is as high as 7H or more, the structure can be made of ultra-thin thickness, and Borderless all-round viewing angle.Support Custom
Customized LCD Size & ResolutionCustomized Interface and Pins definitionCustomized FPC Shape and Material
Shenzhen Chengchen Technology Co., Ltd. was founded in 2015, the company is located in Baoan District, Shenzhen Guangdong-Hong Kong-Macao Greater Bay Area. Focusing on the combination of innovative display and intelligent hardware, we have a professionalR & D technical team, which can design and customize different product structures according to customer needs, strong hardware and software solution design capabilities, providing customers with high-quality display modules, touch one and one-stop solutions, and a complete product assembly plant.Products are widely used in industrial automation equipment, automotive electronics, medical display equipment, drone remote control, robots, industrial mobile terminals,conference equipment,intelligent business display, Internet of Things hardware display and other products. Chengche can provide you with the best quality products and the most satisfactory service.
1. Why choose us?* We have nine years of industrial LCD screen production experience, and we have a high reputation, and with many well-known companies have cooperative relations, there are many very successful cases. OEM/ODM offered for our customers. We are one of the leading manufacturer in this field.
2. What are the estimated lead times for the products?
* Samples that are in stock will be dispatched within 3 days of payment.
* Mass production typically takes between two to four weeks to complete.
3. What is the warranty duration for the products? * Our standard warranty period is generally one year, although it may vary depending on the specific product. 4. What is the Minimum Order Quantity (MOQ) for the products? * The MOQ varies for different products. Please get in touch with our sales team for detailed information regarding specific product MOQs. 5. How can I find the right product? * Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.
