Basic Info.
Automatic Grade
Automatic
Energy Saving
Energy Saving
After-sales Service
Lifetime After-Sales
Remarks
Bales<2200mm(Diameter)
Raw Material
Corn Straw and So on
Be Use for
Biomass Industry
Key Selling Points
Multifunctional
Function
Cutting/Crushing/Shredding Bale, Maize Straw
Transport Package
Iron/Container
Specification
2000*2500*2200mm
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
3600.00cm * 3600.00cm * 2500.00cm
Package Gross Weight
8000.000kg
Product Description

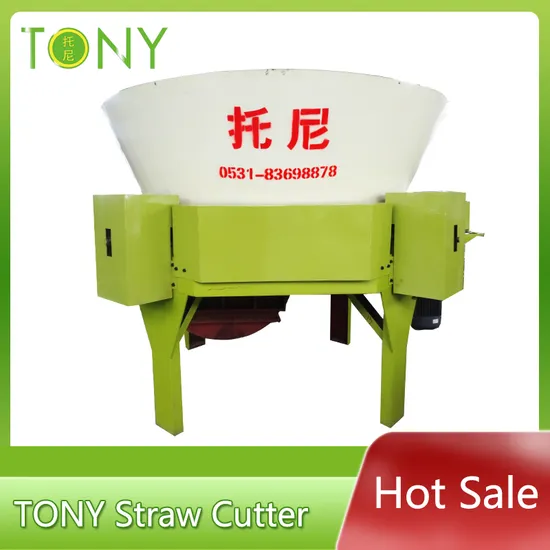

TPX3000 Rice Wheat Straw Rotary Cutter 6-8t/H Straw Bale Chopper
SHANDONG TONY is an integrated enterprise specializing in developing,anufac-turing and international trade of pellet equipments for over 20 years. Main products are biomass ring die and flat die pellet machine,biomass pellet line,feed pellet machine,drying,crushing equipments,cooling screening,mixing and environmental protection equipments.
Product Description
TPX series rotary cutter is mainly used for grinding crop stalks, wheat straw, peanut seeding, sweet potato vine, tobacco stem, cotton stalk, corn stalk, herbage, seaweed and tree branches in bales and heaps.
TPX series rotary cutter is composed of machine frame, rotary cutting device, feeding device and overload protection device. The structure is reasonable and concise using steel forging and cast steel welding technology, durable and convenient for moving. The feeding device adopts 40Cr material sprocket chain driven rotation, with long service life, low damage rate, large torque, high efficiency and uniform performance. Sharp rotary cutting blades and diversified blade matching guarantee the high crushing efficiency.
It can handle various straw bale and branches of different diameters and lengths, suitable for a wide range of moisture content. Four-layer structure, convenient disassembling and transportation.
Product Parameters
Model
| Power (KW)
| Capacity(T)
| Blade (Piece)
| Hammers (Slice)
| Size (MM)
| Weight (T)
| Remarks
|
TPX2000
| 55-90
| 1-5
| 6
| 18
| 2000*2500*2200
| 4
| Binding is less than 1800
|
TPX2500
| 55-110
| 1-7
| 6
| 18
| 3000*3000*2200
| 5
| Binding is less than 2200
|
TPX3000
| 90-160
| 6-12
| 24
| 0
| 3500*3500*2500
| 6
| Binding is less than 2500
|
Detailed Photos
Characteristics of rotary starw bale shredder
1.The turntable can store a large amount of material to realize the intermittent feeding.
2.Rotary disk is provided with a damping plate to seize and rotate the bales for high cutting efficiency.
3.High shredding strength
4.Crushing materials in bales to reduce human labor
Testing On Site
Installation Instructions
Packaging & Shipping
Certifications
Our Advantages
Best Servive
Pre-sale service:
Provide customers the paramenters and confirm technical points.
Share photos and videos with clients.
Show our factory to clients for checking.
On-purchase service:
Keep clients informed of the production progress.
Send photoe to clients before shipments for checking.
Arrange the visa for engineers who will go for guiding assembly.
After-sale service:
Training and all-around technical guidance for operation commission and maintenance.
Engineers abroad to guide assembly.
Detaileddrawing from front view,vertical view,side view.
Other Main Products
CUSTOMER VISIT
FAQ
Q: What is a pellet mill/pellet machine?
A: A pellet mill/pellet machine is a machine that takes raw materials and shapes it into pellet form for multiple uses.
Q: What kind of materials can be pelletized?
A: Materials such as wood wastes, saw dust, corn cobs/stover/stalks, straw, switch grass, other grasses, distillers grain, paper, etc. Basically, most Biomass materials that can be ground down to sawdust form can be pelletized.
Q: What are pellets used for?
A: Pellets are used mainly for heating, animal feed, and animal bedding. Many other applications may apply.
Q: What size does my material need to be, to run through the pellet mill?
A: All materials must be 5mm or less.
Q: What size pellets can I make?
A: We have dies sizes from 4mm-12mm, depending on the machine or your raw materials.
Q: Do you ship worldwide?
A: Yes. We have sent machines to Canada, Europe, Asia, Southeast Asia, Africa, South America, Ireland and Australia.
Q: If I purchase a pellet mill, will you show me how to make pellets?
A: Yes, we do. We will instruct you how to use it via video or phone or engineer avaliable abroad if you need.
