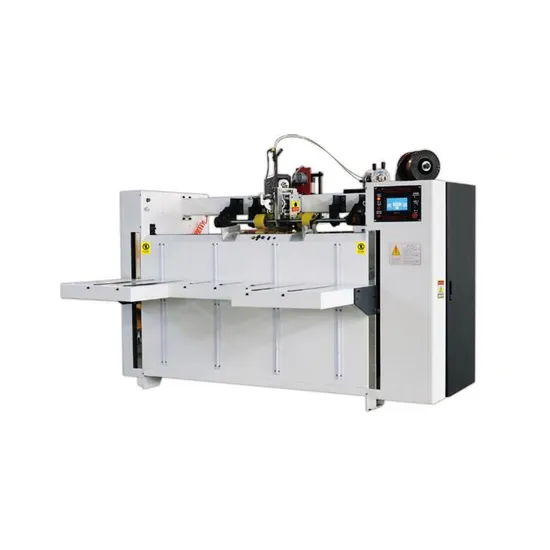

Carton Box Stapler Semi Auto High Speed Stitcher Machine Carton Boxc Stitching Machine

Product Description

Carton Box Stapler Semi Auto High Speed Stitcher Machine carton boxc stitching machine
The main parts and function1.9:28 imported from Japan fujiseries double servo drive, precision, reduce the mechanical transmission part, effectively reduce the mechanical fault rate.
2.delta touch screen operation, the parameters (screw pitch, the number of nails, nail, tailgate) transform is convenient.
3.the whole control system adopts the control system of delta PLC, more accurately convey instructions.
4.after electric baffle, by Taiwan Liming stepper motor drive, accurate size, transform size more convenient.
5.the bottom die, tungsten steel blade adopts Japanese made (wear) has greatly increased the service life.
6.The whole group of nail head. All computer gongs are made of special steel, precision machining, imported from Taiwan, Italy.
7.You can nail a single nail, double nail, once completed, can be suitable for different customers for different requirements for the nail. 8.This transformation and adjustment of carton carton size from the nail it takes only a minute to be completed, greatly saves time and is convenient to operate.
9.the front feeding part automatically counting, the feeding table is provided with a photoelectric sensing device, automatic rising feeder.
10.This post with automatic counting function, finished cartons can be set according to the number (1-99) sub stack sent to lose
11.Send machine end, easy to pack up and bound.
12.Nail automatic alarm after line. (to avoid the non linear when the leak to fight, less nail bad product)
13.from semi-finished stapled to the finished and packaged Banding placed in the whole process of only two people operation, the operation is simple and convenient for less pay.
Technology Parameters:

Model	BDJ-2000	Max sheet size	1515×2460mm
Speed	600 Nail/min	Min sheet size	300×606mm
Nail Span	30-100mm(Arbitrary adjustments)	Power	6HP
Number of nail	1-99	Feeding height	900mm
Nail type	Single, double and reinforced nail	Machine size	2800mm2600mm
nail line specification	2.0mm×(0.650.75mm)	Weight	2000KGS

DONGGUANG XINGLONG PACKAGING MACHINERY CO., LTD. is specialized in the production of various kinds of carton equipments of the well-know enterprise.
Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
Over the years the company take "the quality first" "integrity-based" corporate purpose always meet user're-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
