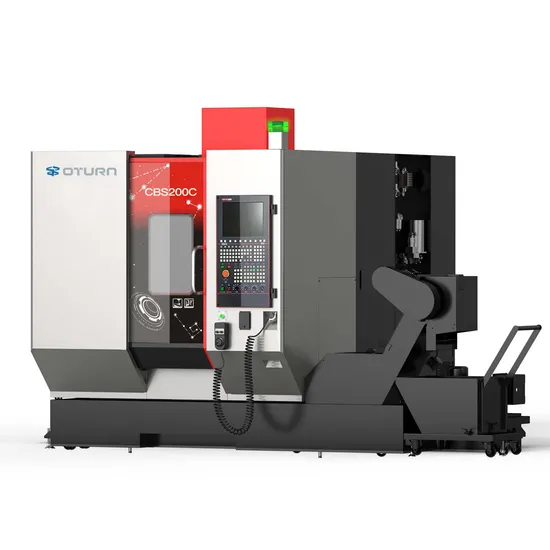

High Processing Performance CBS200c 5 Axis CNC Milling Machine

Product Description

Product Description
The high-speed precision five-axis bridge type machining center CBS200C developed has the characteristics of high rigidity, high precision and high efficiency processing. CBS series machine tools adopt a bridge structure layout, and the XYZ axis movement is not affected by the AC axis, which can maintain high-precision processing for a long time; the X/Y/Z/A/C axes are fully closed-loop control to ensure high-precision processing; the whole machine adopts finite element analysis Each component is designed to provide the best overall stable performance.
The three-axis rapid displacement is 48 M/min, the T-T tool change time is only 5 seconds, and the tool magazine is fully loaded for 24 hours without alarm. The running machine and the 3-dimensional inspection of each machine's trial processing sample ensure the high efficiency, continuous stability of the machine tool after leaving the factory. . It is suitable for various two- and three-dimensional concave and convex models with complex shapes that require 5-axis linkage for one-time processing. It is more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be used in automatic lines for mass production.
Adopting latest C80 plus system, 15-inch large LCD display, dynamic graphic display of tool path, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and faster; the high-speed bus communication method greatly improves the CNC system The data processing capability and control performance are improved, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, which facilitates the fast and efficient transmission and online processing of large-capacity programs
Product Parameters

ITEM		CBS200C
Travel	X/Y/Z axis travel	300*350*250
	Spindle nose to table center	130-380
Spindle	Spindle taper	E40
	Max.spindle speed	30000
	Spindle power(continuous /S3 25%)	11/13.2
	spindle torque (continuous /S3 25%)	11.5/13.8
Feed rate	Rapid speed of (X/Y/Z)m/min	48/48/48
	mm/min Cutting feed	1-24000
Rotary table	Rotary table diameter	200*250mm
	Allowable load weight	20kg
	A axis tilting angle	±110
	C-axis rotation	360°
	A-axis rated/max speed	47/70
	A-axis rated/max cutting torque	782/1540
	C-axis rated/max speed	1500/2000
	C-axis rated/max cutting torque	15/30
	A positioning precision / repeat positioning precision	10/6
	C positioning precision / repeat positioning precision	8/4
ATC	Number of tool	16
	Max. tool diameter / length	80/200
	Max. tool weight	3
	Tool change time (tool to tool)	4
Three axis	X-axis guide (line rail width / number of sliders)	30/2
	Y-axis guide (line rail width / number of sliders)	35/2+30/2
	Z-axis guide (line rail width / number of sliders)	25/2
	X-axis linear motor thrust (continuous/max)	1097/2750
	Y-axis linear motor thrust (continuous/max)	3250/8250
	Z-axis linear motor thrust (continuous/max)	1033/1511
Accuracy	Positioning precision	0.005/300
	Repeating positioning precision	0.003/300
Power	Power supply capacity	30
	Air pressure	≥0.6Mpa ≥400L/min
Machine size	Machine size (LxWxH)	1920*3030*2360
	Complete machine size(LxWxH)	3580*3030*2360
	weight	4.8T
