ISO Plastic Pipe Falling Weight Impact Tester

Product Description

Product Description

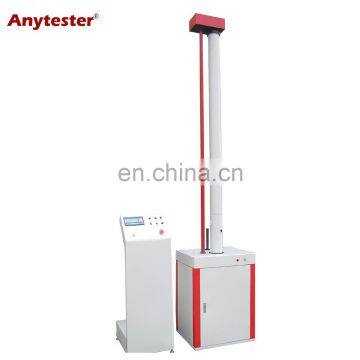

Product DescriptionHY4240 Falling Weight Impact Tester is used to determine the resistance to external impact of various pipes. It is also suitable for rigid plastic sheets. Test pieces are subjected to blows from a falling striker, of specified mass and shape, dropped from a known height onto specified positions around the circumference of the test piece.StandardISO 4422, 3127BS EN 1411, 744GB/T 10002.1, 10002.3, 13664, 16800, 18477ASTM D2444 Note: This Falling Weight Impact Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.Features1. Digital display impact height2. The working table can be adjusted up and down; the specimen can be automatically pointed to zero position3. Lifting structure drives by induction brake motor4. Adopt electromagnet to prevent the second impact5. Seamless steel pipe structure, not easy to deformation and the resistance during the striker falling down will be smaller6. Two type clamps available including V-shape clamp and flat clamp7. Different strikers can be selectableSpecification ModelHY4240AHY4240BStriker mass 0.250~15.000kg, increment: 0.125kgDimensions for the nose of the strikerd25, d90 or customizeR5mm, 6.3mm, 10mm, 12.7mm, 30mm, 51mmImpact height50mm-2000mm610mm-3000mmHeight error±2mmLifting speed12m/minSpecimen specificationΦ10mm~Φ630mm, can be customized Power supplyAC220V, 50HzDimensions800×800×3370mm800×800×4380mmWeight300Kg350Kg
