Asenware Lpcb Approved Infrared Linear Reflex Beam Smoke Detector Outdoor Distance Infrared Photo Beam Sensor

Product Description

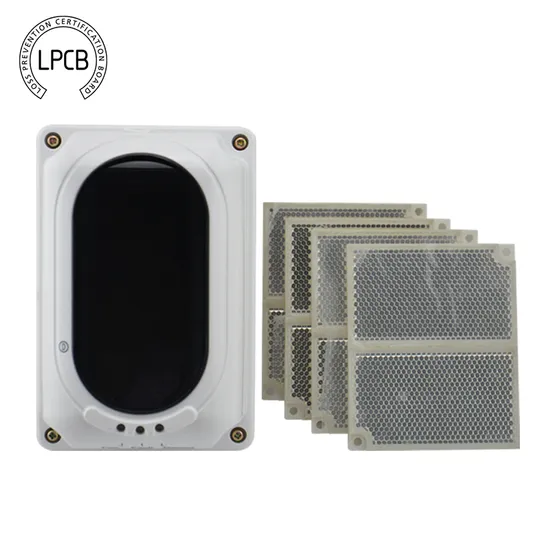

Asenware AW-BK901 Infrared Linear Reflex Smoke Detector Outdoor Distance Infrared Photo Beam Sensor
Outdoor distance infrared photo beam sensor
Description:
The AW-BK901 is a reflective beam Smoke Detector which features advanced motorised technology allowing it to self-align itself to the centre of the reflector when commissioning. Commissioning is a semi-automatic procedure where the unit aligns itself directly onto the centre of the reflector. Once commissioned the detector continually monitors alignment and will automatically realign itself back to the centre of the reflector if any building movement occurs.
The AW-BK901 is ideal for use at the wide areas with high ceiling such as warehouses, large
storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment
factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist

Specification
Order codes	AW-BK901 (8-20M) one reflector AW-BK901(Mid-range 20-40m) one reflector AW-BK901(Mid-range 40-70m) four reflectors AW-BK901(Long range 70-100m)four reflectors
Supply Voltage	20V to 28VDC
Supply Current	Standby≤18mA Commission≤55mA Alarm≤33mA
Operating Temperature Range	-10 °C to +55 °C
Operating Humidity	0 to 95% Relative Humidity, Non condensation
Dimension / Weight	L:190.87 x W:126.87 x H:91.96 mm / 440 gm
Alarm Sensitivity Levels	2.6 dB High Sensitivity 3.4 dB Medium Sensitivity 4.8 dB Low Sensitivity
Ingress Protection Rating	IP30 indoorIP66 outdoor
Maximum Angular Alignment	±5°
Material / Color	ABS/White
LED Indicator Guide	Red: Fire ; Yellow: Fault ; Green: Alignment

certificate
FAQ
1.Are you manufacturer?
(yes)
2.How do you package?
(Standard export packing including):
1) PEE bag per unit
2) Outside Cartons
3.what kind of shipment?
4. warranty
(two years)
5.Delivery time
usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
6. technical support
fire alarm and fire
fighting solutions
provider
our project list
▸ FEW RECENT FINISHED PROJECTS
• Indonesia: Government Apartment ( Addressable and Telephone Panel)
• Cambodia: Coal Plant ( FM-200, LPCO2 System, Addressable Panel )
• Kenya: Senior High School ( Addressable and Conventional Panel)
• Bangladesh: Industrial Building ( Addressable Panel )
• Thailand: Ware House ( Addressable Panel with Beam Detectors )
• Laos: Telecommunication Center ( FM-200, Addressable Panel )
• Myanmar: Data Center ( FM-200, Addressable Panel )
