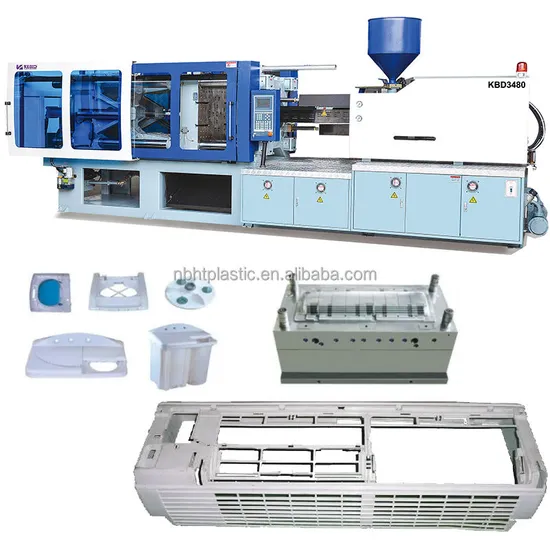

Ebid Factory Lying 738 Ton Plastic Injection Machines Mould China
| US$131,000.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
KBD7380
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Naked, Wooden Case, Wooden Pallet
Specification
738T
Trademark
KEBIDA
Origin
China
HS Code
8477101090
Production Capacity
50 Month
Product Description
Kebidplas has independently developed and made the KBD series plastic injection molding machine,having the characteristics and advantages with beautiful appearance,strong calming force,high precision,low noise ,energy saving and low consumption.KBD series energy-saving servo injection molding machine.
Plastic injection molding machine can apply the following materials: PP/PE/PET/ABS/PPR/PA/PC/PS/PVC/PPR/TPR/TPE/PU/POM/PLA/PMMA and other plastic materials. But the structure of the machine is different for different materials. The price is also different. Need to contact us to confirm the price.
Give us the drawings or photos and dimensions of your products, and we can recommend suitable machines to you.
| SPECIFICATION ITEM | KBD7380 | |||||
| Injection unit | Unit | A | B | C | D | |
| SCREW DIA | mm | 90 | 95 | 105 | 110 | |
| SHOT VOLUME (THEORETICAL) | cm3 | 2990 | 3331 | 4070 | 4467 | |
| INJECTION WEIGHT(PS) | g | 2721 | 3032 | 3703 | 4065 | |
| INJECTION PRESSURE | Mpa | 194 | 174 | 143 | 130 | |
| SCREW SPEED | rpm | 0-110 | ||||
| CLAMPING UNIT | ||||||
| CLAMPING FORCE | KN | 7380 | ||||
| TOGGLE STROKE | mm | 950 | ||||
| SPACE BETWEEN TIE BARS | mm | 980*950 | ||||
| MAX.MOLD HEIGHT | mm | 960 | ||||
| Min.MOLD HEIGHT | mm | 400 | ||||
| EJECTOR STROKE | mm | 260 | ||||
| EJECTOR TONNAGE | KN | 210 | ||||
| OTHERS | | |||||
| PUMP MOTER POWER | Kw | 37+37 | ||||
| HEATING POWER | Kw | 59 | ||||
| MACHINE DIMENSION(L*W*H) | m | 11.43*2.4*3.14 | ||||
| MACHINE WEIGHT | T | 40 | ||||
