Ultimate Professional Die Cutting Machine

Product Description

Discover the CL-106B Automatic Die Cutting Machine by Wenzhou Wandun Machinery Co., Ltd. This sleek blue and white equipment offers advanced die cutting technology for various materials, providing precise and efficient results.

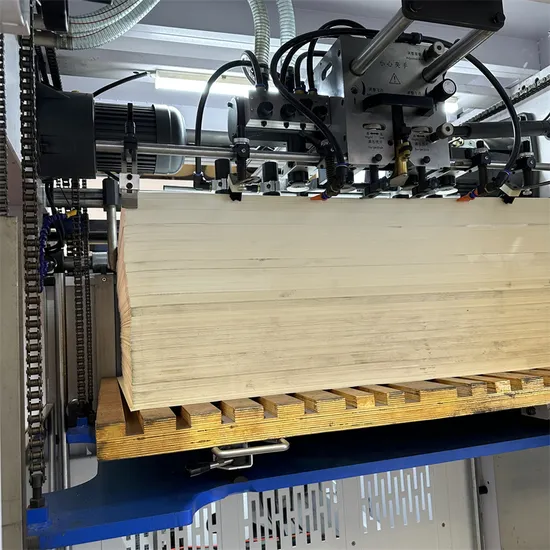

Detailed Photos Product Description Product Description:
The Automatic Die-Cutting & Stripping Machine from Wenzhou Wandun Machinery Co., Ltd. is the essential tool for producing cartons, paper boxes, and high-quality paper products. This machine is designed for the automatic die-cutting and stripping of intricate paper boxes and cigarette cases, streamlining the paper box production process. With its integrated assembly, transportation, and mounting, this machine can be operational within a day, reducing costs significantly. Its precise assembly and high-end configuration set it apart from Taiwanese machines and position it as a strong competitor to Japanese machines.
ain parameter:

Module way	Flattening
Maximum paper width	1070×790mm
Minimum paper width	400×380mm
Maximum die cut (including waste edge)	1060×760mm
The mouth blank	≥5mm
The knife line is high	23.8mm
Plate frame inner plate size	1090×790mm
Paper specifications	80~1000g /m2 (cardboard), 4mm (corrugated paper),
Maximum working pressure	300T
Maximum mechanical speed	7500s/h
Maximum height to paper	1600mm (including wood tray)
Maximum collecting paper height	1400mm (including wood tray)
Machine size	5600×4100×2300
Total mechanical weight	15T
Power of main motor	11kw
Total motor power	17kw
Gas source requirements	Pressure: 0.6-0.7Mpa, flow rate: 0.37m³ / min
