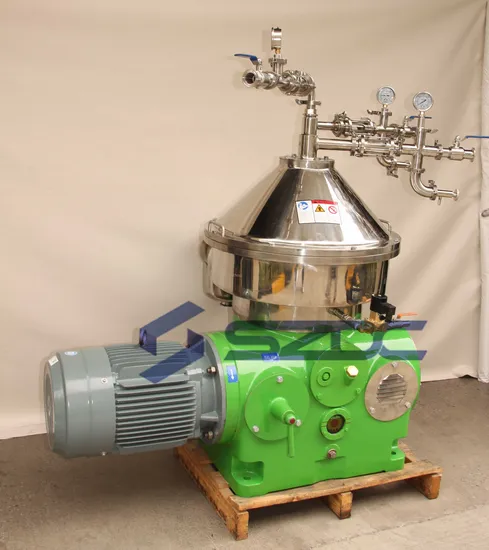

Shenzhou Beer Yeast Centrifuge Separator

Product Description

Product Description Shenzhou Beer Yeast Centrifuge Separator

A beer yeast centrifuge is a self-cleaning disc-stack centrifuge that uses centrifugal force to separate the yeast particles from beer. With a Relative Centrifugal Force (RCF) of over 7,000 Gs, this food-grade centrifuge separates all fine particles down to 0.5 microns to produce clear beer.

Beer Yeast Barm Disc Separator Centrifuge,can widely used in the area of the separation of many kinds of oils, just like oils, plant oils, animal oils, fish oils, and various fuel oils, etc; The clarification of milk products, the fruit juices and
separation of beer, as well as separation and clarification of fermentation liquids during fermentation brewing.
Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifying operation;Disc separator with its compact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, and transportation.
About SHENZHOU: Shenzhou Separator has been at the forefront in the field of disc stack centrifugal separation technology for more than 50 years - which is why disc stack centrifuges from Shenzhou Separator perform this crucial separation function exceptionally well.
Today, Shenzhou Separator is the leader in mechanical separating technology in China. Shenzhou developments are used in a wide range of areas - in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry.
Centrifuge machine Standard design
The machine consists of a frame that has a horizontal drive shaft with clutch and brake, worm gear , lubricating oil bath and vertical bowl spindle in the lower part.
The bowl is mounted on top of the spindle in the lower part. The bowl is mounted on top of the spindle , inside the space formed by the upper parts of the frame , the ring solid cover, the collecting cover, and frame hood . The feed and liquid discharge system , including the paring disc pump for the heavy phase, also rests on this structure. All parts in contact with the process liquid are made of stainless steel. The bowl is of the solid-ejecting disc type with hydraulic operating system. The electric motor is of the variable frequency drive type or of controlled-torque type.
Basic equipment
Concentrator or purifier parts, inlet and outlet devices, revolution counter, set of erosion-protective parts ,illuminated sight glass box for light phase outlet , vibration switch , vibration-isolating base plate , flange motor, set of tool and standard set of spare.
Optional extras
Started equipment, frequency converter, discharge control panel, standard set of fittings, set of CIP valves and fittings and serviceability package for online viewing of separator status
Centrifuge machine Main Parameter:

Model	DHY300	DHY400	DHY500	DHY550	DHY730
Bowl Speed r/min	7300	7056	6600	6200	4500
Sedimentation Area cm^2	17.2*10^7	28.5*10^7	35*10^7	67*10^7	90*10^7
Through-output T/H	2	5	10	15	35
Motor Voltage Kw	4	7.5	15	18.5	55

Application : Dairy separator: skim milk or clarify milk (out of solid impurities). Small separation machine is hand-driven, artificial
discharge, suitable for pastoral herdsmen's home use ; large separators for industrial production, electric drive, automatic or artifical discharge.
Mineral oil separator: for fuel oil, diesel oil, lubricating oil and transformers oil etc similar emulsion,remove mechanical
impurities and water.
Vegetable oil separator: for vegetable oil refining.
Animal oil separator: for refining animal fat in meat processing, or for fish oil concentration and separation processing.
Yeast separator: for concentrated yeast, nozzle discharge.
Starch separator: for removing protein in the starch and concentrating starch, nozzle discharge.
Lanolin separator:in wool industry for extracting lanolin,nozzle discharge.
Pharmaceutical disc separator: for the extraction of antibiotics, vitamins in the pharmaceutical industry;also for separating
liquid-solid three-phase mixture in the pharmaceutical and chemical industry.
Beer separator: for beer, malt juice and other beverages clarification.
Latex separator: for concentrating rubber latex and out of impurities.
Paint separator: for separating impurities in the coating, to improve the quality of the coating.
Material data
Bowl body , hood and locking ring S.S304
Solids cover and frame hood S.S
Frame bottom parts green cast iron , cald with
In and outlet parts S.S
Gasket and o-ring Nitrile rubber
Operating principles
Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe (1),and is accelerated in the distributor(2),which was specially designed to ensure smooth acceleration of the feed liquid(4). Leaving the distributor, the feed enters the disc stack(3). The separation into liquid-liquid-solid takes place between the discs, with the oil phase moving through the disc stack to the centre. When it reaches the centre, it is discharged through hole (5) and ejected into the collecting frame. The water and heavy solid separated from the oil move to the periphery, and the water flows via channels in the top disc(6) to the paring chamber, where it is pumped out of the rotor by means of a built-in paring disc(7).During purification, hot water is fed into the inlet of the bowl before the process liquid is introduced. The water forms a seal around the outer edge of the top disc. The solid collect in the periphery where they are discharged intermittently via the centrifuge cyclone. The solid are discharged by means of a hydraulic system, which forces the sliding bowl bottom(8)to drop down at preset suitable intervals, thus opening the solid ports at the bowl periphery
Disc separator types:
More details picture:
How it works
the disc centrifuge separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency. Inserting special plates (the "disc stack") provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids. The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.
