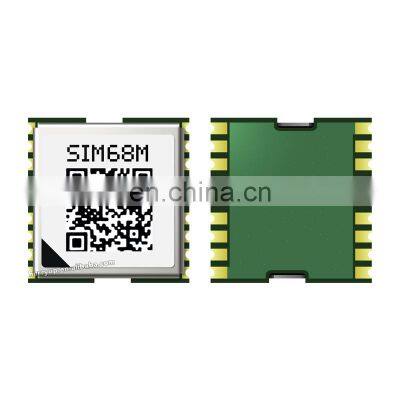

SIMCom SIM68M GPS GLONASS GNSS Module

SIMCom SIM68M GPS GLONASS GNSS Module

Product Description

Product Description
DescriptionSIM68M GNSS ModuleSIMCom presents a high performance and reliable GNSS module-SIM68M. This is GNSS module integrated with GPS &GLONASS system in a SMT type with MTK’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.Mechanical dataFeatures•Dimensions: 10.1*9.7*2.5mm•Weight: 0.5g•Support GPS/GLONASS/Galileo•Support EASYTM self-generated orbit prediction•Support EPOTM orbit prediction•Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS)•Support Jamming Removing•Low-noise amplifier has been integratedInterfacesSupport product•Serial interfaces UART•Digital I/O EINT0 inputPulse-per-second (PPS)•Protocols NMEAPMTK•SIM68 EVB KIT with USB V2.0 full speed interfacePerformance dataElectrical data•Receiver type33tracking/99 acquisitionchannel GNSS receiver•Max. update rate 10Hz•Sensitivity1Tracking:-165 dBmReacquisition:-160 dBmCold starts:-148 dBm•Time-To-First-Fix2Cold starts:28 sWarm start:26 sHot starts:<1sEPO Assist:13s(CTTFF)• AccuracyAutomatic Position3:<2.5m CEPSpeed4:0.1m/s•Operation temperature5: -40℃~+85 ℃•Power supply 2.8V~4.3V •Backup power 2.3V~4.6V•Power consumption2,6Acquisition 25mATracking 20mAAlwaysLocateTM 340uABackup 14uA•Antenna type Active and passive•Antenna power External or internal VCC_RFApprovals• RoHSREACHCE(RED)Deutsche TelekomWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
