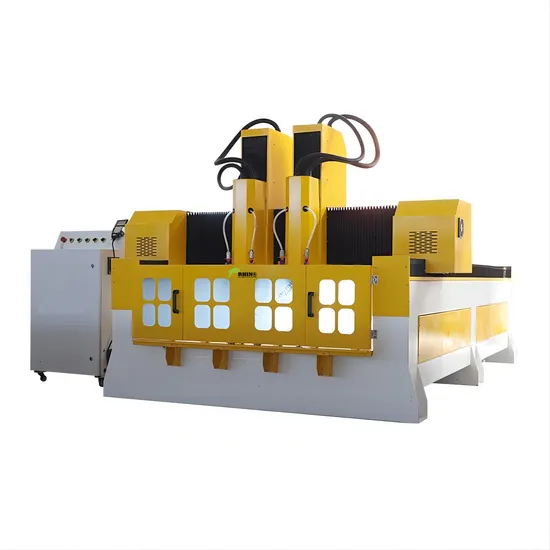

1325 1300*2500mm 1530 3 Axis 4th Axes CNC Router Stone Marble Quarry Carving Machine for Granite Glass Stone Cutting Engraving Drilling Milling Edge Grinding

Product Description

1325 1300*2500mm 1530 3 Axis 4th Axes CNC Router Stone Marble Quarry Carving Machine for Granite Glass Stone Cutting Engraving Drilling Milling Edge Grinding
Product Parameters

Model		R-1530/R-2030
Working Area		1500mmx3000mm/ 2000×3000×500mm (other size can be customized as per detail requirements)
Rotary attachment		Included with servo motor
Spindle Motor 2 sets		3.5KW/4.5kw/5.5KW/7.5KW Inverter-driven spindle motor cooled by water (or air for option)
Working Mode		Leadshine 850w closed loop true servo motor drivers (stepper motor for your optional )
Control System		4 axis A18 DSP off-line control panel with USB interface(128MB) or PCIMC control system
Drive Mechanism		Gear-wheel on x,y axis
Table Surface		Vacuum table or T-slot extrusions
Frame		wholly steel structure
Motion Positioning Accuracy		± 0.03/300mm
Repositioning Accuracy		± 0.05mm
Max Motion Speed		80,000mm/min
Max Engraving Speed		50,000mm/min
Rotating Speed of Spindle		2,4000rpm
Z-axis setting		Auto Z origin tool high sensor
Dictate Formate		G code, *.u00, *.mmg, *.plt
Operating Voltage		3phase 380v/220V 1phase/110v 1phase (customized)
Software		Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software
Packing Size		3350×1950×1990mm
Lubrication System		Oil lubrication system
Net weight/ Gross Weight		1227kg/ 1240kg
Noise Level	Racing	LAeep dB(A)72±1
	Engraving	LAeep dB(A)80±2
	Engraving Peak	LAeep dB(C)95
Optional Parts		Dust Collecting System
		Vacuum Table with Air Pump (For XZ-1224,1325)
		Mist Sprayer and flume
		Rotary device with Dia80mm/100mm/200mm
		MACH3/NCSTUDIO System w/Portable Control Pad (128MB)

Our Advantages
1. Fast cutting milling speed:
machine with fast speed could be 40m/min
2.Multi functions with this stone cnc router
Engraving with fast speed
Cutting with high precision
Drilling with good speed
Milling with high accurate
Edge Grinding with fast speed
3. High accurate of engraving and milling:
repeat location precision could be 0.05mm
4. Tight strong machine structure:
Machine total weight 1000-1300kg with 6mm thickness steel tubes welding for structure
5. Dust collect system:
Machine with dust collector with dust pipw and dust brush to keep it working in the clean environment
6. Vacuum adsorb system:
4X8ft size vacuum table(or other size can be customized) with 8 zones ,also different working size can be customized as per customer needs.
7.Breakpoint specific memory:
keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages
8. Easy operation system:
DSP handle operation easy to learn and operate
9.Wholesale in the World support:
we can sell to all over the world no limited with our wholesale price
10. Servo system:
Machine is with Japan Yaskawa servo motor drivers 850w
11.Long time use :
The vacuum table cnc milling machine adopts an integral steel structure, and the bed body has undergone secondary aging treatment to ensure the motion accuracy and reliability of the whole machine. And the thickened pipe wall ensures stable operation of the equipment, long-term use without deformation, and long service life.
12. Optimize technology of frequency conversion to save 10 kilowatt hours per day.
13. The carving depth of one layer is up to 15 cm, and the speed is increased by 100 times.
14. Simple operation makes carving easier.
15. Automatic leveling, uneven stone can be engraved with flat words.
16. Special spindle which can work on all kinds of materials like hard stone, glass, metal etc
17. Strong power and precision. 5-year warranty, lifetime after-sale.
18. Professional waterproof treatment, so that the service life of the machine is more than 20 years.
19. Stainless steel water retaining treatment to protect the gantry beam of the equipment no damage.
20. The bed bears 10 tons, making the carving easier. Optional automatic feeding function
21. Stainless steel water tank is used as a whole.

Material & Application
Application:
1. In the field of architectural decoration:
Stone cnc machines can be used to process various stone products for architectural decoration, such as stone pillars, stone carving patterns, stone door frames, etc., adding artistic and aesthetic value to buildings.
2. Sculpture production field:
Stone carving machines can be used to create various sculpture works, including public sculptures, garden sculptures, indoor decorative sculptures, etc., to meet the needs of different places for sculpture art.
3. Tombstone making field:
The stone cnc router can process various styles and patterns of tombstones, and customize them according to customer requirements, leaving a beautiful memory for the deceased.
4. Interior decoration field:
Stone cnc machines s can process interior decorations such as stone flooring, stone murals, and stone carvings, adding a noble and elegant atmosphere to the indoor environment.
5. Stone handicraft field:
Stone cnc router machines can process various stone handicrafts, such as stone lamps, stone tables, stone benches, stone carving artworks, etc., enriching people's living space.
6. Kitchen and bathroom countertop processing field:
Stone carving machines can process stone kitchen countertops, bathroom countertops, etc., providing beautiful and durable stone products for home environments.
Overall, this stone cnc router have important applications in the fields of architectural decoration, sculpture production, tombstone production, interior decoration, stone handicraft production, and kitchen and bathroom countertop processing, providing people with a rich and colorful range of stone products for their lives and work.

Working Materials:
This machine can work all kinds of materials like marble,
Granite,
Glass,
Metal,
Aluminum,
Steel,
Plastic,
Wood,
Pvc,
Acrylic,
Solid wood etc hard materials no problem.
and other hard plastic and light metal materials for relief carving, cutting, hollowing and other processes Detailed Photos
1. Strong water cooling system for spindle tools 4.5kw/5.5kw/7.5kw for option
2. Vacuum sucker with vacuum pump 7.5kw that suitable for glass and stone vacuum
3. Vacuum table seperately
4. Delta servo or Leadshine true servo driver and motors total 4 sets for xyz axis
5. Rotary attachment that can put on machine table or fixed side of table as 4 axis for column product engraving with servo motor drivers also
6. Wheels at front of table to be more easier for stone materials loading and un loading
7. Dust proof for XYZ three axis
8. Net clean electronic control box with high quality inverter, Leadshine servo motor and drivers with transformer
9. WEIHONG NK105 /DSP A18 control system with handle with long liftime use
10. Seperate control box with fan to keep clean and cooling function
11. strong T-SLOT working table that can bear weight more than 2T
12. Two rows wheels at behind of machine table more convenient to move materials on table
Optional Parts:
1. Oil mist cooling system (suggest to add if engrave on soft metal) :
2. Dust collect system single bag
3.Lock knife block:
4. Air cooling spindle 3.5kw/4.5kw/5.5kw/6kw/7.5kw with ER20-ER32 for your option
5. Servo motor drivers from Japan Yaskawa 850w
6. Syntec control with handle
7. Oil vacuum pump with noise reducer from German
Packaging & Shipping
1x Engraving machine
1x Control box
1x Parallel port cable 25pin
2x Power cable
1x Tool box and tools
3x Axis motors
1x CD of manual and software artcam/type3/ucancam etc
Machine detail photos:
Samples
Machine cutting and engraving samples:

Cutting Samples:

Edge Grinding Samples:


Company Profile
After Sales Service
Our Services(why choose Rhino cnc)
Guarantee & After Sales Service:

1) Two years warranty under machine normal use we supply maintenance for life freely.
2) 24 hours technical support by phone, email ,MSN,Skype or Remote.
3)Free training to make sure you can master the operation of machine,also we will send manual,instruction,teach video with machine together.
4)English vesion operation manual,popular and easy to understand and handle

Company Advantages
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3, 5-9 days machine production time, one year warranty and lifetime free maintenance
4, OEM and ODM services available
5, Same quality, our price and service are better; Same price, our quality and service are better
6, with CE, FDA, SGS, ISO9000 certifications

FAQ:
Question 1: I'm interested in stone cnc router machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?

Question 2: What's the delivery cost and time of this stone cnc router ?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: What is the design software used in this stone cnc router ?

Answer: We give free Type3 and Artcam software,you can also use your own software,as long as it can transfer into G code .
Welcome to contact us if you have more requirements for above machine!
Also we can produce the cnc router according to your detail requirements!
