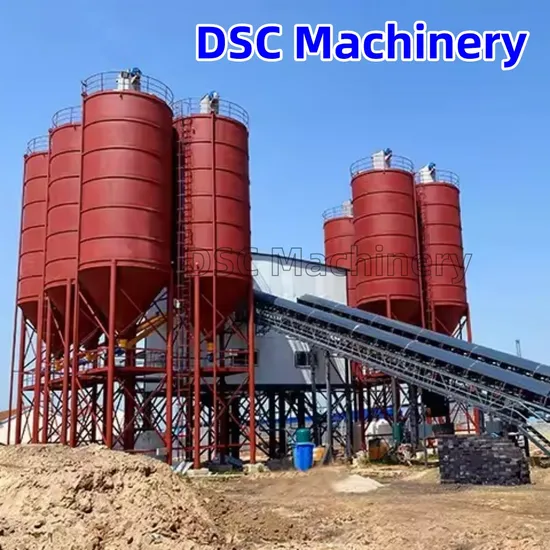

Hzs 25m3 35m3 50m3 60m3/H China Cost Price Fixed Cement Concrete Concrete Batching Mixing Plant Stationary Machine Manufacturers
| US$16,000.00-53,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HZs60
Shotcrete Type
Semi-Dry
Machining Process
Welded Molding Machine
Structure
Cylinder Type
Productivity
60m²/h
Feeding Height
1400mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Machine Type
Batching Machine
Core Components
PLC, Gearbox, Mixer, Batch Station, Bucket Elevato
Product Name
Ready Mixed Concrete Batching Plant
Keywords
Concrete Batching Plant
Weight
15000kg
Capacity
35m3/H
Concrete Mixer Type
Double Horizontal Shaft Forced Mixer
Function
Mixing Sand Stone
Power
Cement
Transport Package
Bubble Wrap
Specification
1 CBM per hour
Origin
China
HS Code
84743100
Production Capacity
300
Product Description
| HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS100 | HZS120 | HZS150 | HZS180 | |
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | Skip Hopper | belt conveyor |
| Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 60 | 65.5 | 85 | 100 | 145 | 164 | 188 | 210 | 230 | 288 |
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 8 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
