Chinese Factory Sn20Zn80 Metal Spray Wire

Product Description

Product Description:
Introducing Zinc Tin Alloy wire from SHAOXING TIANLONG TIN MATERIALS CO., LTD., a premium metal spraying material designed specifically for the end face of metalized film capacitors. Compliant with the EU "RoHS" directive since July 1st, 2006, this lead-free wire offers exceptional performance and quality, surpassing similar overseas products.
Sn20Zn80 Tin alloy wire is a cost-effective solution for metal spraying applications, ensuring efficient and reliable results for various industries including high-speed rail, automotive, new energy, and aerospace sectors.
Zinc Tin Alloy Wire for Film Capacitor Experience the best in film capacitor metal spraying material with Zinc Tin alloy wire from SHAOXING TIANLONG TIN MATERIALS CO., LTD. The smooth and bright surface of the Zinc Tin wire ensures no broken wires, greasy dirt, burrs, scratches, or scars, providing a seamless user experience.
Rest assured, our Zinc Tin wire complies with EU ROHS, REACH, and other relevant environmental protection regulations, guaranteeing a safe and eco-friendly choice.
Product Code: HYSnZn
Chemical Composition: (to be provided by the company)

Item	Main elements (%)		Impurities (≤)%
	Sn	Zn	Pb	Cd	Fe	TTL
HYSnZn10	89-91	REMAINING	0.02	0.002	0.012	0.05
HYSnZn15	84-86	REMAINING
HYSnZn20	79-81	REMAINING
HYSnZn30	69-71	REMAINING
HYSnZn40	59-61	REMAINING
HYSnZn50	48-52	REMAINING
HYSnZn53	45-49	REMAINING
HYSnZn60	38-42	REMAINING
HYSnZn70	28-32	REMAINING
HYSnZn75	23-27	REMAINING
HYSnZn80	18-22	REMAINING
HYSnZn90	8-12	REMAINING

Discover our Sn20Zn80 economic metal spray wire for film capacitors, made by SHAOXING TIANLONG TIN MATERIALS CO., LTD. This lead-free electronic product offers good electrical performance, ideal for industrial and electronic applications. Manufactured in China, it meets GB, ASTM, and RoHS standards with a purity of ZnSn.

Item	Specific Gravity (g/cm3)	Melting Range (ºC)	Volume Resistivity (mΩ·mm2/m) 20ºC	Tensile Strength Rm (N/mm2)	Elongation After Fracture A 100mm(%)
HYSnZn10	7.0-7.3	198-216	≤ 115	≥ 60	≥ 20
HYSnZn15		198-250	≤ 105
HYSnZn20		198-285	≤ 100
HYSnZn30		198-325	≤ 95
HYSnZn40		198-345	≤ 90
HYSnZn50		198-355	≤ 85
HYSnZn53		198-362	≤ 83
HYSnZn60		198-375	≤ 80
HYSnZn70		198-385	≤ 78
HYSnZn75		198-390	≤ 76
HYSnZn80		198-395	≤ 74
HYSnZn90		198-405	≤ 72

Diameter: 1.0mm≤Ф≤3.20mm
Packaging & Shipping

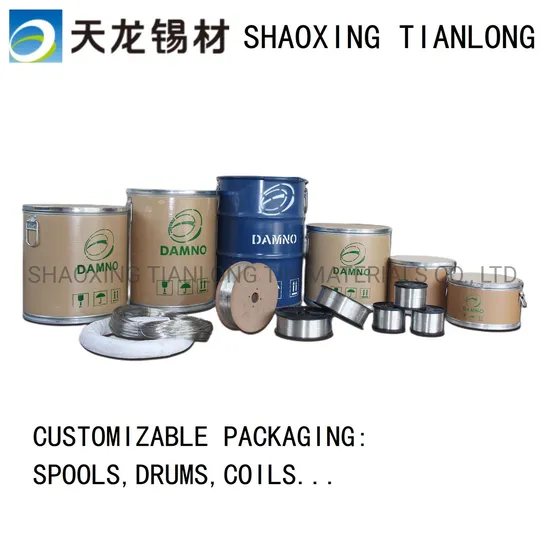

Product packing:
Sn20Zn80 economic metal spray wire for film capacitor. Zinc/Tin alloy wire with good electrical performance. Lead-free and ideal for electronics and industrial applications. Standard: GB, ASTM, RoHS. Purity: ZnSn. Made in China.

Hard paper drum	100-150 kg	outer diameter 550 mm, inner diameter300mm, variable height
Hard paper drum	20-50 kg	outer diameter 400 mm, inner diameter190mm. variable height
Plastic spool	15 kg	flange300mm, width100mm, center hole:55mm
Plastic spool	15 kg	flange270mm, width103mm, center hole:55mm
bundle	20-40 kg

Choose from a variety of pallet sizes including 1100mmX1100mm, 1200mmX800mm, 1000mmX1000mm, 800mmX800mm for your needs.
