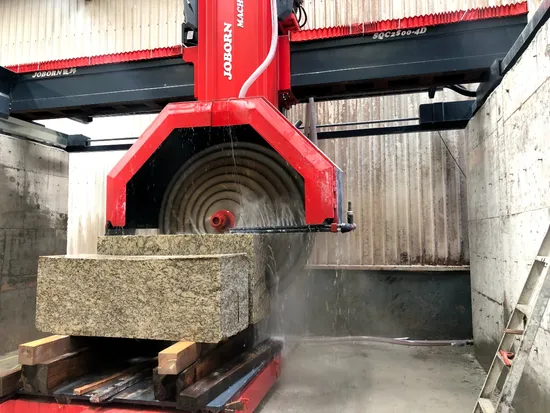

Joborn Hot Selling Sqc2200-4D Hydraulic Multiblade Bridge Cutting Machine for Granite Blocks First Grade for Egyptian Market

Joborn Hot Selling Sqc2200-4D Hydraulic Multiblade Bridge Cutting Machine for Granite Blocks First Grade for Egyptian Market

US$29,500.00-36,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
SQC2200-4D
Usage
Granite, Marble
Application
Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
ISO, CE
Max. Blade Diameter
2200mm
Max. Processing Length
3800mm
Max. Processing Width
2200mm
Main Motor Power
45kw
Max.Lifting Stroke
1350mm
Spindle Length
500mm
Spindle Diameter
100mm
Transport Package
Standred Packing
Trademark
Joborn
Origin
China
HS Code
8464109000
Production Capacity
360 Sets/Year

Product Description

Product Description
Appellation Unit Type A Type B
Max. Disc Diameter mm Φ2200/Φ2500/Φ2800
Max. Processing Length mm 3800/3500/3200 4300/4000/3700
Max.Processing Width mm 2200
Max. Lifting Stroke mm 1350
Water Consumption m³/h 15
Power Of Main Motor kW 37/45/55
Total Motor kW 48/56/66
Dimension(L*W*H) mm 8000*4400*3700 8500*4400*3700
Weight kg 14000 14500

This machine adopts microcomputer control system and human-machine interface, uses inverter to control left-right feeding, adjusts the speed according to the stone material.
It uses hydraulic lifting system , combination of chrome-plated guide pin and wear guide bush, with small gap , wearable, beautiful structure , and guide sleeve with multi-layer seals , with waterproof , dust-proof , anti-spill , improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost;forward-backward automatic slicing uses high-precision screw nut driving, main spare parts adopt imported good-quality materials;
The block can be placed in the ground directly to save worktable and its maintenance costs; thus the whole machine is featured as high cutting efficiency, high slicing precision, and flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite and marble block with high value and big size. Note: 360°rotating worktable can be selected if customer requires.
