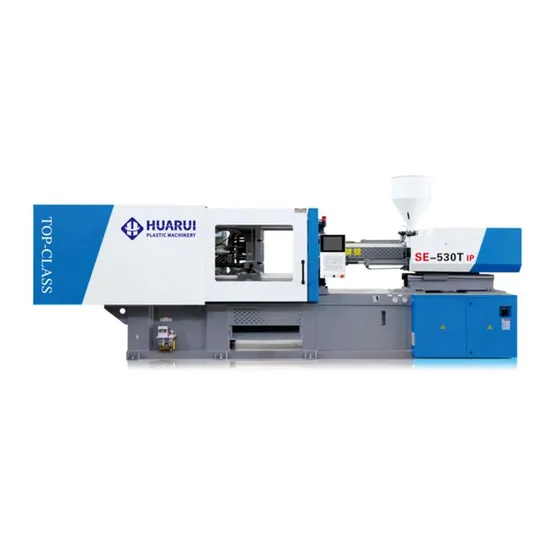

PE PP Pet Preform Injection Molding Machine for Manufacturing Plant Use

PE PP Pet Preform Injection Molding Machine for Manufacturing Plant Use

US$65,000.00-70,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-530T IP
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
917cm³/Sec
Weight
23000kg
Motor Power
56kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
9.6*2.2*3.0m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Automatic Servo Plastic Bottle Cap Making Plant Pet Preform Injection Molding Machine
Product Parameters
Se-530T/IP Plastic Injection Molding Machine Information
Item Unit A
B
C
Screw diameter mm 95
Theoretical shot volume cm³ 3083
Shot weight (PET) g 3576
Shot weight (PET) oz 126.1
Length/Diameter ratio L/D 25
Injection pressure Bar 1303
Injection rate cm³/sec 917
Max.screw speed rpm 129
Clamping force KN 5300
Max.daylight mm 1275*1225
Open stroke mm 850
Space Between Tie-bars mm 870*820
Min mould dimension mm 320
Mould thickness range mm 870
Ejector force KN 160
Ejector stroke mm 220
No.of ejector pins unit 13
Max.motor power KW 55+36
System pressure MPa 175
Heater input power KW 56
Oil filling capacity L 700
Machine size M 9.6*2.2*3.0
Net weight KG 23000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
Company Profile
