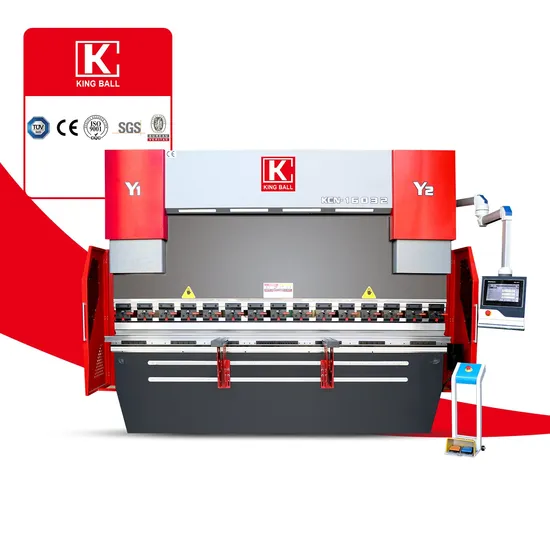

Electro hydraulic Synchronous CNC Press Brake
Model: KCN-20040
6+1 Axes CNC Control(X,Y1,Y2,R,Z1,Z2,W)
X: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke
R : Backgauge up and down; Z1,Z2: Left and right stopper movement
W: Worktable crowning(optional)
Main functions and features
*Overall welded and processed structure.
*Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
* Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.
* Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
*Delem CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.
* Ram stroke(Y1, Y2),backgauge (X, R,Z1,Z2) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.
*Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
Technical Parameters

NO.	Item	Parameter		Unit
1	No minal pressure	2000		KN
2	Table length	4000		mm
3	Max. Slider stroke	200		mm
4	Max. Shut height	480		mm
5	Between columns	3100		mm
6	Throat depth	400		mm
7	Main motor power	15		KW
8	Down Speed	130		mm/s
9	Pre ssing Speed	9		mm/s
10	Return Speed	120		mm/s
11	Control axes	X+Y1+Y2+R+Z1+Z2+W		/
12	X a xes Stroke	500		mm
13	X axes Speed	250		mm/s
14	R axes Stroke	200		mm
15	R axes Speed	60		mm/s
16	Z axes Speed	100		mm/s
17	Backgauge Stoppers	3		/
		L	4500	mm
18	Overall dimension	W	1950	mm
		H	2700	mm
19	Machine weight	13800		kg

Detailed Pictures
Detailed Photos
Backgauge with ball screw and linear guide, high precision, fast speed and low noise
Double sliding front support arm installed on the linear guide, movable easy.
DA-69T CNC system
*3D and 2D graphical touch screen programming mode
*3D visualisation in simulation and production
*17" high resolution colour TFT
*Full Windows application suite
*Delem Modusys compatibility (module scalability and adaptivity)
*USB, peripheral interfacing
*User specific application support within the controllers multitasking environment
*Sensor bending & correction interface
Main configuration

Name	Producer
CNC controller	DA 69T D elem Holland brand
Electrical components	Schneider France brand
Gear pump	Sun ny USA brand
Seal ring	NO K Japan brand
Hydraulic system	Bo sc hrex roth Germany brand
Ball screw ,Linear guide	HI WIN Taiwan brand
Grating ruler	G IVI Italy brand
Tubing connector	E MB Germany Brand
Main motor	Sie me ns Germany Brand

The standard accessories are in the below:
*Anchor bolt
*Hex nut
*Seal ring
*Gasket
*Grease gun
*Allen wrench
*Foot switch
*Front support arms
*Electrical box key, control panel key
*Operation manuals
