US$430.00-1,205.00
|
1 Piece
(MOQ)
|
Basic Info.
Frequency Characteristics
Intermediate Frequency
Frequency
Industrial Frequency
Power Source
Switching Regulated Power Supply
Application Range
Scientific Research Department
Transport Package
Seaworthy Packing
Production Capacity
50000
Packaging & Delivery
Package Size
550.00cm * 650.00cm * 1130.00cm
Package Gross Weight
200.000kg
Product Description
Three Phase Servo Motor Automatic Voltage Regular
SVC3 1.5-90K
KEY FEATURES Three phase Servo motor automatic Voltage Regular 1.5KVA-90KVA Input 3P+N+G=380V or 3P+G=220V Output 3P+N+G=380+-3% or 3P+G=220V±3% PF 0.8, Terminal Overload , short Circuit over-voltage, low voltage etc Voltage regulating speed 10V/S LED + Dial display,or LCD display Option TECHNICAL SPECIFICATIONS
Input Voltage Range | Default 3P+N+G= 260V-430V or 3P+G=150- 264; Option 3P+N+G= 160-430V |
Output Voltage | Default 3P+N+G=380V or 3P+G=220V |
Stabilization Accuracy | Default 3P+N+G=380V ±3 % or 3P+G= 220V±3% |
Frequency | 50Hz / 60Hz |
Wave Form Distortion | No addictive wave form distortion |
Efficiency | >90% |
Debug Time | <1s (With the input voltage variation of 10%) |
Over Voltage Protection | Default Phase Voltage 246V±4V or 130V ±4V |
Ambient Temperature | from -10 to +40ºC |
Temperature Rise | Lower than 60ºC |
Overload Power Factor | 0.8 |
Dielectric strength | 1500V/min |
Insulation resistance | 2MΩ |
Protection | overload , short Circuit over-voltage, low voltage etc. |
Display | LED + Dial instrument display,or LCD display Option |
Model | Capacity | Product Size (mm) | G.W (kg) | Packing Size (m) | Unit/CTN |
SVC3-1.5K | 1.5KVA/1.2KW | 480*320*165 | 14 | 0.57*0.41*0.255 | 1 |
SVC3-3K | 3KVA/2.4KW | 480*320*165 | 17 | 0.57*0.41*0.255 | 1 |
SVC3-4.5K | 4.5KVA/3.6KW | 480*320*165 | 18 | 0.57*0.41*0.255 | 1 |
SVC3-6K | 6KVA/4.8KW | 305*275*670 | 30 | 0.375*0.345*0.745 | 1 |
SVC3-9K | 9KVA/7.2KW | 325*315*770 | 38 | 0.395*0.385*0.85 | 1 |
SVC3-15K | 15KVA/9.6KW | 425*370*830 | 90 | 0.5*0.45*0.91 | 1 |
SVC3-20K | 20KVA/16KW | 415*460*895 | 100 | 0.545*0.505*0.985 | 1 |
SVC3-30K | 30KVA/24KW | 415*460*895 | 108 | 0.545*0.505*0.985 | 1 |
SVC3-40K | 40KVA/32KW | 415*460*895 | 120 | 0.545*0.505*0.985 | 1 |
SVC3-50K | 50KVA/40KW | 450*550*1160 | 155 | 0.55*0.64*1.13 | 1 |
SVC3-60K | 60KVA/48KW | 450*550*1160 | 162 | 0.55*0.64*1.13 | 1 |
SVC3-75K | 75KVA/60KW | 620*510*1350 | 200 | 0.695*0.595*1.515 | 1 |
SVC3-90K | 90KVA/72KW | 620*510*1350 | 215 | 0.695*0.595*1.515 | 1 |

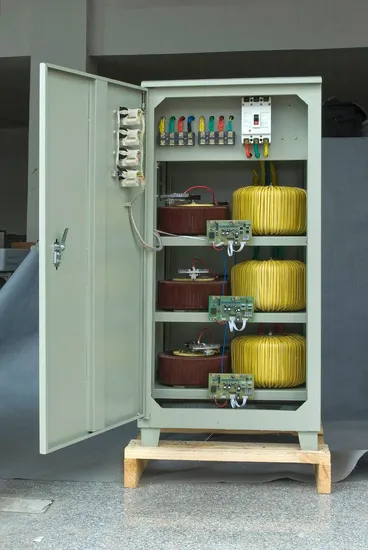

PRODUCT DISPLAY
Input voltage and output power
