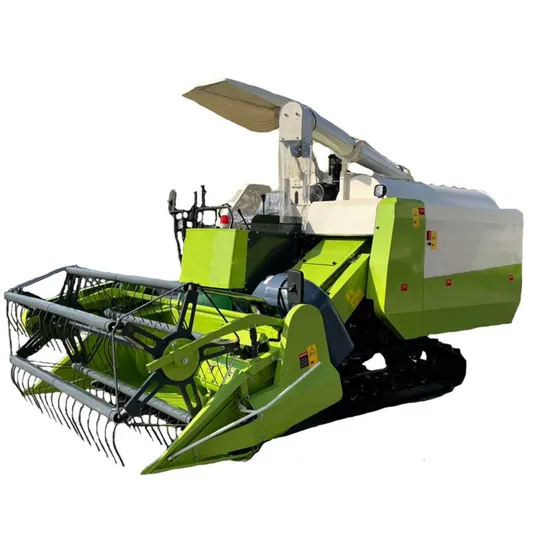

Wubota Combine Harvester 4lz-6.0 2.58m Cutter
Basic Info.
Model NO.
Wubota combine harvester
Application
Rice, Corn, Wheat
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Certification
ISO9001:2008, CE
Condition
New
Application Field
Agriculture
Warranty
One Year
Product Name
Wubota 360 Degree Rotating Unloading Auger Combin
Model
4lz-5.0
Rated Power
88HP
Rotating Speed
2600 R/Min
Dimension
4850mm*3200mm*2500mm
Weight
3000 Kg
Cutting Width
2200 mm
Feeding Capacity
5.0 Kg/S
Minimum Ground Clearance
340 mm
Operation Speed
1.8 to 5.3 Km/H
Fuel Consumption
18.5 to 40 Kg/Hm2
Productivity
0.25 - 0.65 Hm2/H
Transport Package
Standard
Specification
CE SGS ISO
Trademark
WUBOTA
Origin
China
HS Code
8433510090
Production Capacity
500 Sets/Month
Product Description
Kubota Paddy field rice combine harvesterWelcome.
Product Parameters
| No. | Item | Unit | Upgraded 4LZ-4.5 Specification | |
| 1 | Model | / | 4LZ-4.5 | |
| 2 | Sturcture Type | / | Vertical Axis Flow Full Feeding Rubber Crawler Self-propelled | |
| 3 | Engine | Type | / | 4-Cylinder,Vertical Engine,Water Cooled, DI-Injection, Turbocharged Engine |
| Rated Power | kw | 78 | ||
| Rotating Speed | r/min | 2400 | ||
| 4 | Dimension(L*W*H): | Working State | mm | 4850*3200*2500 |
| Transportation | mm | 4850*2735*2500 | ||
| 5 | Weight | kg | 3000 | |
| 6 | Cutting Width | mm | 2180 | |
| 7 | Feeding Capacity | kg/s | 4.5 | |
| 8 | Minimum Ground Clearance | mm | 310 | |
| 9 | Operation Speed | km/h | 1.8 to 5.3 | |
| 10 | Productivity | hm2/h | 0.25 to 0.65 | |
| 11 | Fuel Consumption | kg/hm2 | 18.5 to 40 | |
| 12 | Cutter Type | / | Standard Type II | |
| 13 | Cutting Header Auger Type | / | Telescopic Transverse Conveyor Auger | |
| 14 | Reel | Type | / | Eccentric Tooth(off center) |
| Diameter | mm | ∮1000 | ||
| Quantity | pc | 5 | ||
| 15 | Threshing Roller | Quantity | pc | 1 |
| Type | / | Vertical Axis Flow Spike Tooth | ||
| External(D*L) | mm | ∮655*1877 | ||
| 16 | Concave Sieve Type | / | Grid | |
| 17 | Brake Type | / | Wet Friction Plate | |
| 18 | Fan | Type | / | Centrifugal |
| Diameter | mm | ∮346 | ||
| Quantity | pc | 1 | ||
| 19 | Rubber Crawler | Size | / | 450mm*90mm*56 |
| Track Gauge | mm | 1190 | ||
| 20 | Gear Box | / | Hydraulic Stepless Speed Transmission(HST) | |
| 21 | Rethresher Type | / | Auger Spike Tooth | |
| 22 | Grain Unloading Type | / | Hydraulic Rate | |
FAQ:
1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.
2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.
3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.
4. Q: How many harvesters can be loaded in one container ?
A: (1) 20 Feet Container loads:
For combine harvester:
1 set 4LZ-4.0/4.5
For Power Tiller: 18 sets GN12; 20 sets M80
For Spare Parts: 15-18 tons
(2) 40 High Cube Container Loads:
For Combine Harvester:
3 sets 4LZ-4.0/4.5
For Power Tiller: 40 sets GN12; 50 sets M80
For Spare Parts: 30-35 tons
5. Q: What is the payment term ?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6. Q: What is the after-sales service ?
A: Every year we send our engineer and after-service people to local market to assist our sales agent for staff training, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7. Q: Is OEM or ODM service acceptable ?
A: OEM service is no problem, if you have any special requirements about the machines, please kindly inform us, our engineering department will study and offer you the suitable solution.
