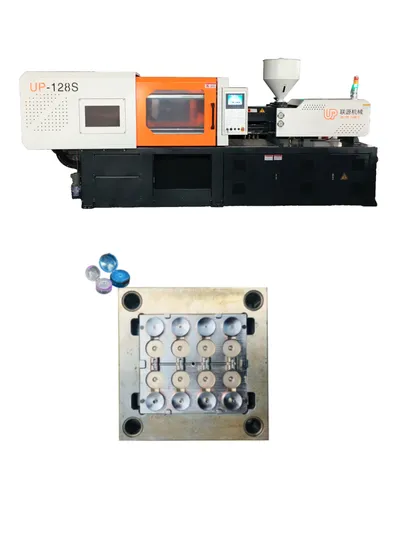

up-128t High Precision Injection Molding Machine with 200L Tank Volume
| US$14,000.00-15,200.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-128T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Computer
Arcuchi PLC
Machine Weight
3.6t
Tank Volume
200L
System Pressure
16MPa
Transport Package
Film Packing
Specification
4.3*1.15*1.85
Trademark
UP
Origin
Chian
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description
Ningbo Union Power Machinery Co., Ltd. - UP-128 Servo Type Injection Molding Machine
Features:
More space between pull rods
Central clamping structure
Famous components
Servo motor energy saving
Low noise, 0.05 second fast response
High precision, stability, and long service life
T-groove pressing plate
Rich spare parts
Better price
Low water consumption
Low maintenance electrical and hydraulic
Reduce power consumption by up to 80%
Flow and pressure output control sensor
Clamping Device:
Optimized formwork design
High rigidity and large pull rod spacing
Platen Layout based on Europe with T-slot and tap hole
New ejection system design
Hydraulic drive gear type mold adjusting mechanism
Mechanical safety interlock device
Injection Device:
High-quality linear motion guide
High Speed⪻essure injection structure
Double nozzle cylinder
Special screw barrel design
Hydraulic System:
Dual proportional composite valve
Imported high-quality water pump
Can be equipped with world-famous servo hydraulic system
Accurate feedback control of pressure and flow
| Technical Parameters | Model UP-128 | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 40 | 42 | 45 |
| Shot Volume (cm3) | 227 | 251 | 288 |
| Injection weight (g) | 204 | 1440 | 1636 |
| injection pressure (Mpa) | 203 | 226 | 259 |
| Screw speed (rmp) | 0-200 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1280 | ||
| Open stroke (mm) | 360 | ||
| Max Mold height (mm) | 400 | ||
| Min Mold height (mm) | 150 | ||
| Space between tie bars(mm) | 420x380 | ||
| Ejector force (KN) | 38 | ||
| Ejector stroke (mm) | 100 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 11(11.5) | ||
| Heating power (KW) | 7.3 | ||
| Machine dimension (M) | 4.3x1.15x1.85 | ||
| Machine weight (T) | 3.6 | ||
| Oiltank cubage (L) | 200 | ||
