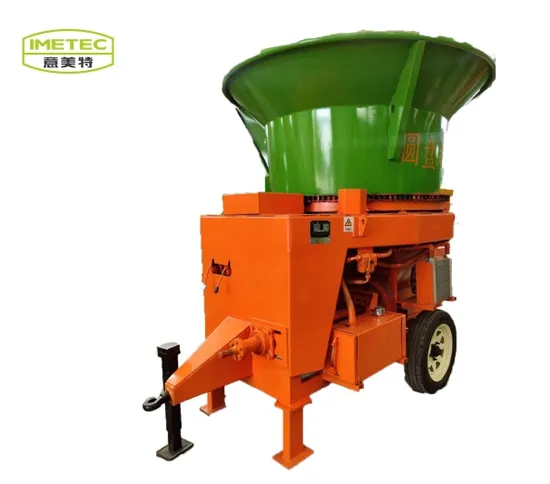

100cbm Round Hay Crusher Hammer Chopper for Straw Cutting for Farm

Product Description

Key attributes
Product Parameters

Blade Type	Hammer
Volume	130
Capacity	3Tons
Usage	Crusher
Power Source	Electric
Suitable	Hay
Dimension	Customized
Origin	Tan'an, Shandong, China

Model	9FC-130
Main Motor	90KW 4 phase
Cut Length	3-5cm
Efficiency	4-6t/hour
Upper Box Dia	2800mm
Bottom Dia	2200mm
Hammer Number	48pieces
Application	Dry Hay such as alfafa,rice stalks etc
Loading Way	Wheel loader
Discharging Outlet	Upper or Down can be chosen
Guarantee	2 Years

Straw Hay Crusher is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, It is an essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.It can handle all kinds of bales with different thicknesses, different lengths, and different moisture contents, with a wide range of moisture and adaptability,and convenient disassembly and transportation.
Baler Shredder features1. The turntable can store a large amount of materials, realize intermittent feeding and continuous work.2. The inner disc of the rotating disc is designed with a damping plate, which can grasp the bale and rotate it, and the cutting efficiency is high.3. There are many movable knives, high shredding degree, and the blades are welded with tungsten alloy, which can be used for a long time.4. The power driving mode can be electric motor driven or tractor PTO driven.
Detailed Photos

Company Profile
IMETEC Intelligent Equipment (Shandong) Group Co., Ltd. is a national high-tech enterprise specializing in the production, R&D and export of intelligent equipment for dairy farms.
Focusing on pasture intelligent equipment for 25 years, has won the Shandong Province, "Specialized, Specialized and New", science and technology-based small and medium-sized enterprises, the provincial livestock science and technology, the third prize, the Chinese dairy industry excellent supplier, a member of the China Agricultural Reclamation Union, selected by the CCTV "Brand Strong Preferred Demonstration Project". Vice president, executive and director of China Dairy Association, China Cattle Industry, China Sheep Industry, Inner Mongolia, Heilongjiang, Ningxia, Shandong and other dairy industry associations.
sbandry industry, high-quality developmentComprehensively passed the IS09001:2015 international quality management system and the European Union CE certification, IMETEC trademark has passed the Madrid International Trademark Registration with the Ministry of Agriculture and Rural Affairs of Nanjing, Shandong Agricultural University, Shandong University, Shandong Agricultural Machinery Institute and other scientific research institutes, breakthroughs in foreign necks more than ten, currently has a total of 108 patents of invention, utility model, design, and lead the drafting of the industry standard two, four group standards. Industry standards two, four group standards. 2023 December 12 Chen Ping, vice governor of the province led a team to visit the Italian Meitei, at the same time, sure that the Italian Meitei in the animal hu, the full affirmation of the intelligent lead the future practice.
Exhibition Photos
