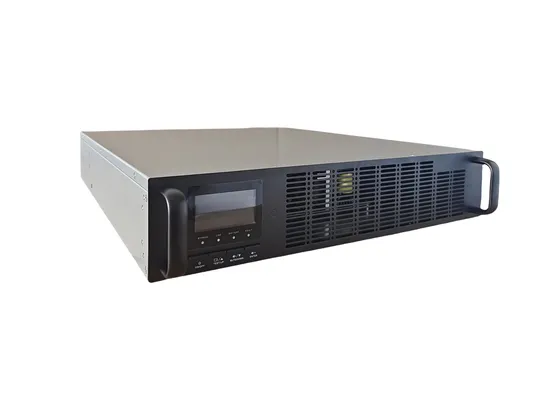

220V 2kVA Online High Frequency Rack UPS

Product Description

Industrial UPS Inverter
The Industrial UPS Inverter from Communication Power Inverter NASN Factory is a new generation of intelligent MCU industrial Power Supply inverter and a standalone DC to AC inverter system for Telecom and industrial power applications. Developed and designed for the requirements of Telecom and Industrial, heavy duty application, which delivers continues true sine wave output power with high stability.Comprehensive solutions for servers, cloud computing, edge computing, 5G networks and communications infrastructure.Widely applied in communication Power systems, railway power systems, and other power systems to meet the high quality and high reliability requirements, and applicable to all the uninterrupted sine wave AC output systems that are sensitive to power interference and require reliable and clean.In addition, the inverter system offers new opportunities for energy savings by providing backup AC power.DC / AC inverters for telecommunication and communication equipment convert the DC batteries voltage to AC. NASN's Inverters are designed and built for reliability. These telecom-grade inverters provide pure ac sine-wave power for all critical network needs. we offer a wide range of inverters and converters in different capacities to integrate with DC Power Systems.
Features: 1. Inbuilt charging function for battery;
2. Zero transfer time from line mode to battery model;
3.RS232 and USB communication port, optional SNMP remote;
4.Support parallel connection(max 9pcs) suitable for network cabinet power supply;
5.Auto restart while AC is recovering;
6.Cold start function
7.Zero-transfer Time
8.Smart battery charger design for optimized battery performance
Applications:
Applied to Inductive Load and Resistive Load
§Vehicle and shipboard equipment: Railway station, transportation equipment, etc.
§Industrial equipment: solar power, wind power, gas discharge lamps, etc.
§Office equipment: computer, printer, copy, scanner, etc.
§Kitchen appliances: microwave oven, induction cooker, rice cooker, etc.
§Household electrical equipment: electric fans, vacuum cleaners, lighting fixtures, etc.
Datasheet:More details:

Model	HSS1103R	HSS1103RS
Capacity	2kVA/1.8kW
AC INPUT
Wiring	L/N+PE
Rated Voltage	208/220/230/240VAC
Voltage Range	90~300VAC
Frequency Range	40Hz~70Hz
Power Factor	≥0.99
AC OUTPUT
Wiring	L/N+PE
Output Voltage	208/220/230/240VAC
Voltage Regulation	1%
Frequency	50/60±4Hz(Sync mode);50/60Hz±0.1%(Free run)
Waveform	Pure sine wave
Distortion(THD)	<2%(Linear load);<7%(Non-Linear load)
EFFICIENCY
Line Mode	89%
Battery Mode	87%
BATTERY &CHARGER
Rated Battery Voltage	48VDC	72VDC
	Internal	External
Battery Capacity	12V/7AH	Extenal battery
	x4pcs
Backup Time	>6mins @half load	depends
Charging Current	Standard model with internal battery:1A; Long backup time model :4A
HMI
LCD Display	Input mains voltage,frequency,load level,operation mode,health status
Communication	RS232 port
ENVIRONMENT
Temperature	10~50ºC
Relative Humidity	0-98%(Non-condensing)
Acoustics Noise	<55dB @1 meters
PHYSICAL
Dimension	440x400x88(2U)	440x400×88(2U)
WxDxH(mm)
N.W(kg)	16.5	7.3
Product specifications are subject to change without prior notice
