China Automatic Fence Panel Welding Machine Price

China Automatic Fence Panel Welding Machine Price

US$17,500.00-46,800.00 1 set (MOQ)

Basic Info.

Model NO.
DP-FP-2500A
Voltage
Customized
Style
Horizontal
Warranty
Local After-Sales Service
Wire Diameter
2.5-6mm
Line Wire Space
50-300mm
Cross Wire Space
Min.25mm(12.5mm, 12.7mm)
Mesh Width
2500mm or Customized
Welding Speed
50-75 Times/Min
Welding Electrode
48PCS
Longitude Wire Feeding
Pre-Straightened& Pre-Cut
Cross Wire Feeding
Pre-Straightened& Pre-Cut
Transport Package
Inside with Plastic Film, Outside with Wooden Box
Specification
CE
Trademark
DAPU
Origin
Hebei, China
HS Code
8463300000
Production Capacity
20 Sets Per Month

Packaging & Delivery

Package Size
3200.00cm * 1800.00cm * 1800.00cm
Package Gross Weight
5000.000kg

Product Description

Product Description

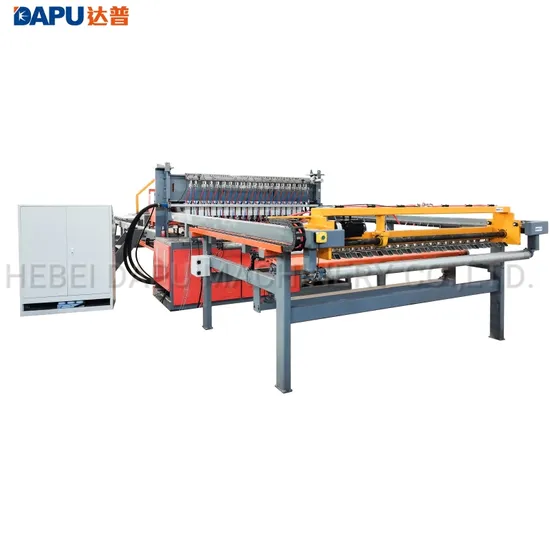

China Automatic Fence Panel Welding Machine
Low price
Good quality
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, roll mesh welding machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, nail making machine, wire drawing machine, expanded metal mesh machine, expanded metal machine, gabion mesh machine, hexagonal wire mesh machine, crimped mesh machine etc.
Parameter of machine
Model DP-FP-2500A Wire diameter 2.5-6mm/3-5mm
Line wire space 50-300mm Cross wire space 25/12.5mm-300mm
Width of mesh Max.2.5m Length of mesh Max.6m
Welding electrodes 48pcs Welding speed 50-75 times/min
Rated electrical power 125kva*6pcs Needed power Min.160kva
Weight 4.2T Overall size 5.4m*3.2*1.7m

Details of machine Main technologies
1.The control panel is more intelligent, very easy to operate. (Panasonic PLC program)
2.The longitude wires should be inserted into slot tunnels (cast iron material), suitable for different diameter.
3.The cross wires are fed from cross wire feeder, controlled by step motor and SMC (Japan) air cylinder.
4.Pure red copper (upper) and chromised bronze (lower), durable.
5.Clutch motor and helical gear reducer connect the principal axis directly, welding stable.
6.Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.
7.Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.
8.The cable drag chain is Igus brand, imported from Germany, not easily hang down.
Wire feeding way
The longitude wires and cross wires should be pre-straightened and pre-cut.
1.The longitude wires are inserted into the slot tunnels manually.
2.The cross wire are put into the cross wire feeder, which is controlled by step motor&SMC (Japan) air cylinders,automatic falling.
Loading & delivery
Contact us
Sales:Elaine Lu
Facebook account: ElaineLu357622
