Xinning Automatic Horizontal Flaskless Molding Line for Casting Iron Wit Green Sand

Product Description

Automatic Horizontal Parting Flaskless Molding Casting MachineProduct Detail description:
XN-SW Series Green Sand Automatic Foundry Casting Horizontal Parting Flaskless Molding Machine -This is an automatic molding machine to replace traditional manual hand molding method. It has compact structure and high safety performance, easy to operate, cover small floor space and make low noise.
Application:
Widely used in castings, machinery parts, auto and motorcycle parts, valves, bearings, cylinder head, flywheel housing and brake caliper, but also pipe fitting, shaft and cover, like T joint, elbow and clampetc .
More competitive for those products require inner sand core.
Main parameter & spec.:

Model	XN-SW-55x45	XN-SW-60x50	XN-SW-65x55	XN-SW-71x61	XN-SW-71x61HY
Size of Sand Mold (mm×mm)	550*450mm	600*500mm	650*550mm	710*610mm	710*610mm
Sand Mold Thickness (mm)	Up 120-180 Down 120-180	Up 120-220 Down 120-220	Up 120-220 Down 120-220	Up 120-220 Down 120-220	Up 120-220 Down 120-220
Molding	Sand shooting squeeze molding
Moulding speed (Sec/mold)	32(Without the time of putting sand core)	36(Without the time of putting sand core)	38(Without the time of putting sand core)	38(Without the time of putting sand core)	45(Without the time of putting sand core)
Compaction pressure	0.6Mpa 2 segment conversion mode	0.7Mpa 2 segment conversion mode	0.7Mpa 2 segment conversion mode	0.7Mpa 2 segment conversion mode	0.7Mpa 2 segment conversion mode
Drive mode	Hydraumatic-pneumatic
Air consumption	1.1m3(Normal/mold)	1.2m3(Normal/mold)	1.2m3(Normal/mold)	1.3m3(Normal/mold)	1.3m3(Normal/mold)
Power supply	AC220-380V (Operation DC24V)
Sand mold weight	85kg	130kg	150kg	210kg	320kg
Motor power	24KW	28KW	28KW	36KW	36KW

Model	XN-SW-71x68	XN-SW-75x65	XN-SW-100x100	XN-SW-130x80	XN-SW-75x65 Slide out
Size of Sand Mold (mm×mm)	710*680mm	750*650mm	1000*1000mm	1300*800mm	750*650mm
Sand Mold Thickness (mm)	Up 150-250 Down 150-250	Up 150-250 Down 150-250	Up 150-250 Down 150-250	Up 150-250 Down 150-250	Up 150-250 Down 150-250
Molding	Sand shooting squeeze molding
Moulding speed (Sec/mold)	38(Without the time of putting sand core)	40(Without the time of putting sand core)	50(Without the time of putting sand core)	50(Without the time of putting sand core)	50(Without the time of putting sand core)
Compaction pressure	0.6Mpa 2 segment conversion mode	0.7Mpa 2 segment conversion mode	0.7Mpa 2 segment conversion mode	0.7Mpa 2 segment conversion mode	0.7Mpa 2 segment conversion mode
Drive mode	Hydraumatic-pneumatic
Air consumption	1.3m3(Normal/mold)	1.3m3(Normal/mold)	1.3m3(Normal/mold)	1.3m3(Normal/mold)	1.3m3(Normal/mold)
Power supply	AC220-380V (Operation DC24V)
Sand mold weight	345kg	348kg	710kg	740kg	348kg
Motor power	36KW	40KW	32KW	32KW	40KW

Advantages over similar Products:
1) Over 12 years experience in casting equipment.
2) First and most accepted China brand.
3) Most competitive price and quality.
4) Short delivery time.
5) Instant aftersale service on line.
6) Import and Export License.
7) OEM.
Sales & after-sales services:
Warranty 1 year free.
Lifetime maintenance.
Afersale service: instant service, by on line chatting, or by phone, or by remote services or other way by negotiation.

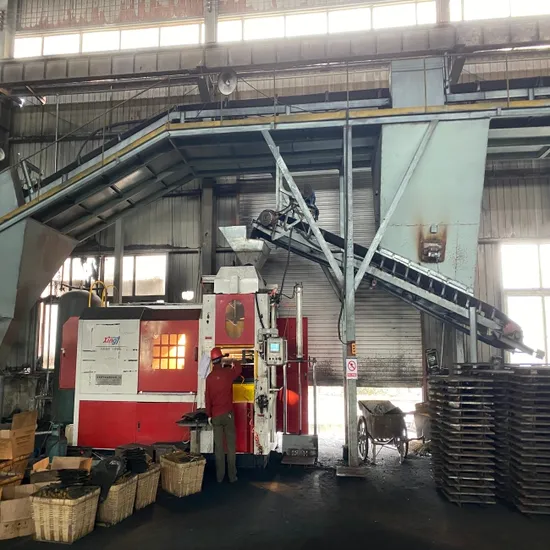

Automatic Horizontal Parting Flaskless Molding Casting Machine operational Site:
Testing Area:
About Company:
Xinning Group covers an area of more than 40 acres and has a production plant of more than 50,000 square meters. With more than 20 years of experience and product development accumulation, Xinning Group has transformed from wear-resistant casting production to professional research and development. A high-end foundry equipment enterprise integrating manufacturing and sales has become a high-tech enterprise focusing on independent research and development of foundry equipment in the foundry industry. After 20 years Xinning Group has set up Xinning R&D center in Hangzhou and Xinning design department in Ningguo at headquarter. Based on more than 20 years of practical experience, the company has strong manufacturing innovation ability and rapid response mechanism, and continuously creates value for customers' transformation and upgrading. Xinning Group strictly comply the international manufacturing standards such as CE and ISO9001 standard and strict control of each production process, scientific quality control process, and perfect after-sales service system to provide safety guarantee for customers' use. According to the customer's product process and site, Xinning has customized the production line equipment to meet the customer's requirements. At the same time, it provides overall planning and design, process technical support and operator training for foundry enterprises, and provides one-stop service. Xinning group pursues the concept of excellence in the development policy, focusing on the R&D innovation, manufacturing and sales of casting equipment for 20 years.
