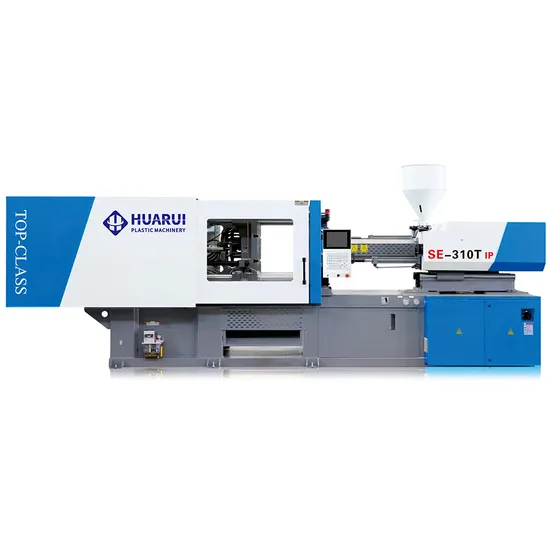

High-Capacity Plastic Disposable Tableware Food Container Box Fork Making Injection Molding Machine

High-Capacity Plastic Disposable Tableware Food Container Box Fork Making Injection Molding Machine

US$38,500.00-43,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-310T IP
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
548cm³/Sec
Weight
10500kg
Motor Power
34kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
7.0*1.6*2.3m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

High-Capacity Plastic Disposable Tableware Food Container Box Fork Making Injection Molding Machine
Product Parameters
Se-310T/IP Plastic Injection Molding Machine Information
Item Unit A
B
C
Screw diameter mm 75
Theoretical shot volume cm³ 1436
Shot weight (PET) g 1666
Shot weight (PET) oz 58.8
Length/Diameter ratio L/D 25
Injection pressure Bar 1330
Injection rate cm³/sec 548
Max.screw speed rpm 167
Clamping force KN 3100
Max.daylight mm 950*900
Open stroke mm 610
Space Between Tie-bars mm 670*620
Min mould dimension mm 270
Mould thickness range mm 670
Ejector force KN 110
Ejector stroke mm 170
No.of ejector pins unit 13
Max.motor power KW 55
System pressure MPa 175
Heater input power KW 34
Oil filling capacity L 400
Machine size M 7.0*1.6*2.3
Net weight KG 10500

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
