Manufacturer Price Lifting Lever Chain Block / Hoist with V Type

Product Description

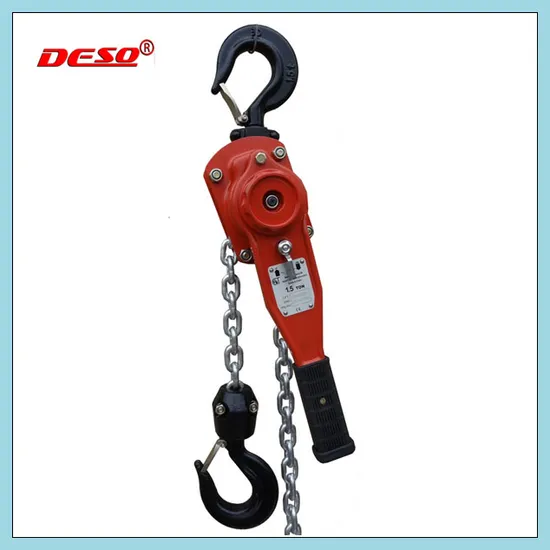

Lever Block / Hoist
* Rolled-edge hand wheel cover provides smooth operation of the hand chain when pulled sideways.
* Strong and least-corrosive electrostatic powder painting.
* Wet friction discs with longer lift span.
* Unique chain guide.
* Wider opening hooks of easier handling shape.
* Tough froming: The tough gear casing, reinforced with four ribs and four knock pins, provides
* Accurate gear centering and high mechanical efficiency.
* Standard of load chain: EN818-7.

Technical Data Sheet

Capacity (t)		0.75	1	1.5	2	3	6	9
Lift (m)		1.5	1.5	1.5	1.5	1.5	1.5	1.5
Test load (t)		1.1	1.5	2.25	3	3.75	7.5	11.25
Pull to lift full load (N)		145	150	200	200	280	310	320
Number of load chain		1	1	1	1	1	2	3
Load chain dia (mm)		6	6	7.1	8	10	10	10
Dimensions (mm)	A	155	155	165	165	185	195	195
	B	60	60	65	65	85	85	85
	C	135	135	145	145	195	250	335
	D	40	40	46	46	50	64	85
	K	24	24	31	31	34	43	55
	H	300	300	365	365	440	575	700
	L	255	255	365	365	365	365	365
Net weight (kg)		7	7	10	12	18	28.5	45
Weight of extra chain each metre (kg)		0.8	0.8	1.1	1.4	2.2	4.4	6.6

* Compact design, small body, low headroom - wide usage
* With retaining pawl for load chain fast adjustment
* High precision machining gears
* Impact resistance gear cover
* Double pawl brake system, fused brake disc
* High precision caged roller bearing
* Chain stopper protects the body
* Calibrated G80 chain for heavy duty use
* Quenched and tempered hooks
* Meet 1500 cycles EN13157 endurance testing
* Individual serial No. for each set, with aluminium sticker showing brand deso, capacity.
