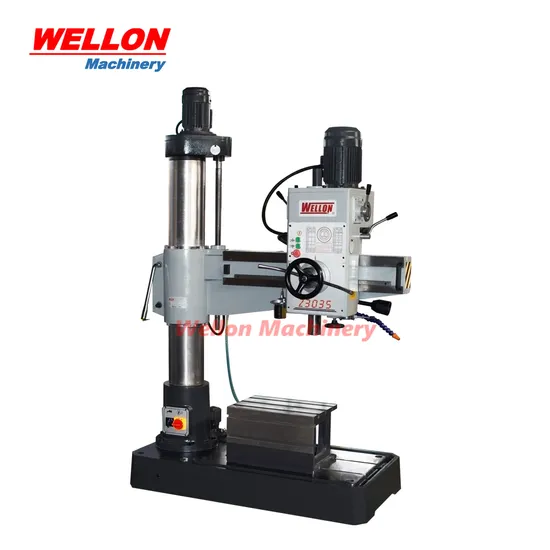

Mechanical Radial Drilling Machine (Z3035X10) Rocker Driller Machine

Mechanical Radial Drilling Machine (Z3035X10) Rocker Driller Machine

US$1,900.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3035x10
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Dia (mm)
35mm
Spindle Taper
Mt4
Spindle Travel
200mm
Spindle Speed
75-1200rpm
Spindle Speed Steps
6 Steps
Motor Power
3.0kw
Lifting Motor Power
0.75kw
Weight
1100kg
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
China
HS Code
84592900
Production Capacity
200PCS/Month

Product Description

Product Description:
Mechanical Radial Drilling Machine (Z3035X10) Rocker Driller Machine
Performence Features:
The large weight and stiff construction of the drill ensures stability and vibration free operation
The cube table ensures easy adjustment and filling of the workpiece
Height adjustment of the arm by motor
Control panel located on the front of the drill for better performance and ergonomics
The polished surface of the column ensures easy, free and precise travel of the arm
Drill equipped with manual blocking of the head and arm of the column
The large speed range ensures precise and fast processing
Technical parameter:
Model Z3035x10
Max. drilling capacity 35 mm
Distance from spindle to column 360 - 1000 mm
Distance from spindle to table 260 - 1000 mm
Spindle travel 200 mm
Spindle taper MT4
Spindle speed 75-1200 rpm
Spindle speed steps 6 steps
Spindle feed 0.1 0.16 0.22 mm/r
Rocker rotary angle 360 degree
Motor power 3.0 kw
Lifting motor power 0.75 kw
Dimensions 1235x600x1780 mm
Weight 1100 kg

Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise
