Underground Shotcrete Machine Concrete Spraying Machine Wet Concrete Sprayer
| US$130,000.00-150,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
UPS-12JT
Type
Shotcrete
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
12 Cubic Meters/H
Feeding Height
1400mm
Vibrating Amplitude
None
Certification
ISO9001: 2000
Condition
New
Color
Orange
Transport Package
Bulk
Specification
6350x1500x1800mm
Trademark
Jarlo
Origin
China
HS Code
870590000
Production Capacity
1000 Sets/Year
Product Description

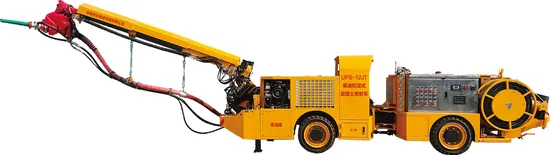

UPS-12JT Diesel Wet Concrete Spraying MachineAppearance
Dimensions
Turning Radius
Spraying Scope
Main configuration and technical parameters
| Items | Parameters and Configuration | Remarks | |||||
| Parameters | UPS-12JT | ||||||
| Total Weight(kg) | 7800 | ||||||
| Dimension(L×W×H,mm) | 6490×1500×1800 | ||||||
| Actual concrete spraying capacity | 12m³/h | ||||||
| Power mode (dual power) | Driving: Diesel engine (retractable boom, pumping and cleaning equipment) Working: External 380V AC | ||||||
| Total power (engine/motor, kw) | Engine:36.8kw Motor:22+22(Total power 44 kw) | ||||||
| Maximum concrete spraying pressure (MPa) | 7 | ||||||
| Configuration | |||||||
| Chassis | Manufacturer | Anhui Jarlo Construction Machinery Co., Ltd. | |||||
| Engine | Type | Four-cylinder water-cooled turbo | |||||
| Rated power(kw/rpm) | 36.8/2200 | ||||||
| Exhaust emission standard | National 4 | ||||||
| Driving and steering | 4-Wheel drive, articulated steering | ||||||
| Front axle/rear axle manufacturer | Fenyi | ||||||
| Articulate Steering Angle(°) | +40/-40 | ||||||
| Brake system | Driving: hydraulic wet type Parking: spring brake, hydraulic release | ||||||
| Gradeability | 20° | ||||||
| Turning radius | 2470/4250 | ||||||
| Driving speed | Max. 10km/h | ||||||
| Min. Ground Clearance(mm) | 220 | ||||||
| FOPS & ROPS | Satisfied | ||||||
| Concrete jet pump | Manufacturer | Anhui Jarlo Construction Machinery Co., Ltd. | |||||
| Type | Piston pumping system | ||||||
| Capacity(m3/h) | 12m3/h | ||||||
| Concrete specification | slump | 12~18cm | |||||
| Max.Aggregate size | 12mm | ||||||
| Shotcrete aggregate particle size | Max. 12 | ||||||
| Concrete delivery valve type | S Pipe valve | ||||||
| Concrete pumping pressure | 7(MPa) | ||||||
| Concrete bore size × stroke | φ140*550mm | ||||||
| Main cylinder diameter | 80mm | ||||||
| Hopper volume | 0.2(m3) | ||||||
| Hopper loading height | 0.95m | ||||||
| Vibrator | Electric vibrator and stirrer, bottom opening discharge gate | ||||||
| Boom of concrete spraying machine | Manufacturer | Anhui Jarlo | |||||
| Structure type | Main arm rotation, spray arm pitch + telescopic | ||||||
| Maximum effective spray range | Upward | 7m | |||||
| Forward | 6m | ||||||
| Downward | 2m | ||||||
| Width | 12m | ||||||
| Boom rotation angle | 360° | ||||||
| Boom pitch range | (Upward 64° / Downward 40° ) | ||||||
| Axial rotation range of nozzle sea | 360(°) | ||||||
| Axial swing range of nozzle seat | 240(°) | ||||||
| Nozzle swaying angle+movement | 8°*360° Rotation | ||||||
| Operation | Dual control: 100 meters wireless remote control + 16 meters wired | ||||||
| Remote control system | JARLO | ||||||
| Conveying pipeline(mm) | Steel pipe:70 Hose:63 | ||||||
| Conveying pipeline cleaning | Water+Air Washing | ||||||
| Hydraulic system | Main oil pump | Type and manufacturer | Electric proportional piston pump PUSH | ||||
| Rated pressure | 28(MPa) | ||||||
| Flow | 60(L/min) | ||||||
| Main pump valve | Taiwan | ||||||
| Swing cylinder valve | Taiwan | ||||||
| Auxiliary oil pump | Type and manufacturer | Piston pump,PUSH | |||||
| Rated pressure | 28(MPa) | ||||||
| Flow | 41(L/min) | ||||||
| Air compressor | Nominal volume flow | 6 m3/min | |||||
| Motor nominal power | 22 kw | ||||||
| Exhaust pressure(Mpa) | Rated 0.5MPa,Max. 0.7MPa | ||||||
| Accelerator automatic batching system | Manufacturer | JARLO | |||||
| Type | Hose pump | ||||||
| Flow | 0~800(L/h) | ||||||
| Delivery pressure | 10(bar) | ||||||
| Accelerator flow valve | American Hydra-force | ||||||
| Accelerator tank volume | 120 L | ||||||
| High Pressure washing pump | Manufacturer | Black cat 1812 | |||||
| Max. Output pressure (MPa) | 15 | ||||||
| Output flow(L/min) | 15 | ||||||
| Water tank volume(L) | 78 | ||||||
| Electrical System | Motor protection level | IP55 | |||||
| Safety protection | Leakage protection, safety grounding | ||||||
| Controller form and manufacturer | Special controller, Germany IFM | ||||||
| Motor brand | Wannan motor | ||||||
| Low voltage control electrical appliance brand | Schneider | ||||||
| Cable | Cable drum drive method | Hydraulic drive | |||||
| Cable specifications | 3*25+1*16 | ||||||
| Cable length | 50 | ||||||
| External power requirements | AC 380V,100KVA | ||||||
| Other configurations | working lamp | LED | |||||
| Hydraulic legs | Available | ||||||
| DOC+CDPF | Available | ||||||
| Automatic Fire Extinguishing | Optional | ||||||
