400mm Horizontal Lathe Machine Ca6240 for Tools

Product Description

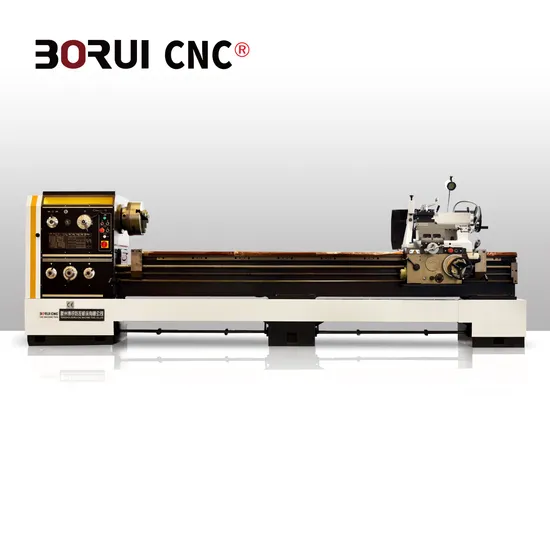

400mm Horizontal Lathe Machine CA6240 for Tools
Product Description
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
The main feature :
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
The main specification :

SPECIFICATIONS UNIVERSAL LATHE CA6140/CA6240
SPECIFICATION		CA6140	CA6240
Max .Swing over bed		400mm	400mm
Max .Swing over carriage		210mm	210mm
Max .Swing in gap		--	630mm
Effective gap length		--	210mm
Max .length of work piece		750/1000/1500/2000/2200/3000mm
Width of bed		400
Section of turning tool		25x25mm
Spindle	Spindle speed	10-1400rpm/16-1400rpm(24steps)
	Hole through spindle	52mm ,(B: 80mm)
	Spindle taper	(MT6)(Φ90 1:20)[Φ113:20]
Feed	No. of feed	(64 kinds)(for each)
	Range of metric threads	(1-192mm) (44 kinds)
	Range of inch threads	(1-24tpi) (21kinds)
	Range of module threads	0.25-48 (module 39 kinds)
	Range of diametral pitc threads	1-96DP (37 kinds)
Tailstock	Max. tailstock spindle travel	150mm
	Tailstock spindle diameter	75mm
	Taper of tailstock spindle center hole	(MT5)
Main motor		7.5KW(10HP)
Packing dimensions (L×W×H mm)	Packing size for 750mm	2440×1140×1750mm
	Packing size for 1000mm	2550×1140×1750mm
	Packing size for 1500mm	3150×1140×1750mm
	Packing size for 2000mm	3650×1140×1750mm
	Packing size for 2200mm	4030×1140×1750mm
	Packing size for 3000mm	4800×1140×1750mm
G.W. / N.W. (kg)	G.W. / N.W. for 750mm	2100 /1990kgs
	G.W. / N.W. for 1000mm	2190 /2070kgs
	G.W. / N.W. for 1500mm	2350 /2220kgs
	G.W. / N.W. for 2000mm	2720 /2570kgs
	G.W. / N.W. for 2200mm	2800 /2600kgs
	G.W. / N.W. for 3000mm	3300 /3200kgs

Standard Accessories: Optional Accessories: 1. Centers; 1. Quick change toolpost
2. Steady rest (750mm without this); 2. 2-axis Digital readout
3. Follow rest (750mm without this); 3. 4-jaw chuck
4. Foot plate; 4. Grinding head
5. Face plate (CA61** without this); 5. Tamping attachment
6. 3-jaw chuck;
7. Leading screw guard; (3000mm without this)
8. Toolpost protection;
9. Chuck protection;
10. Cooling system;
11. Work Lamp.
12. Back guard
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
Our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
