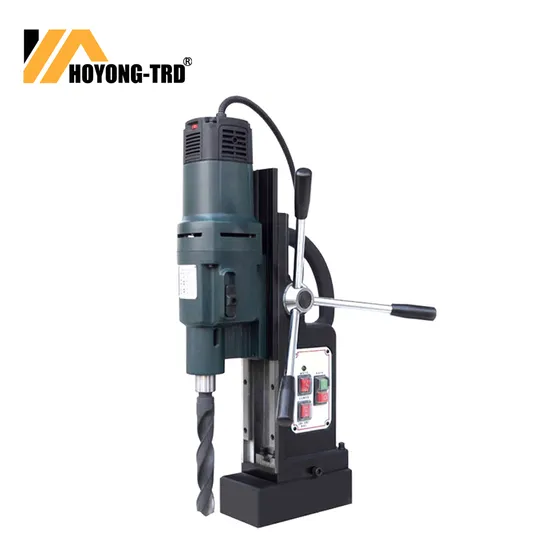

High Quality Annular Cutter Magnetic Drilling and Tapping Machine Jc3202

Product Description

Magnetic Drill:
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of working
metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive power controlled by
electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick. They are built with durability
and heavy use in mind and feature powerful motors and strong magnetic bases.
Magnetic Drill Usage:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform, very potable and universal drilling machine for its
light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is an ideal
machine in steel construction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal working, boilers,
machinery manufacturing, environmental protection, oil and gas pip line industries

MODEL	JC3201	JC3202
Motor power (w)	2000	2000
Speed (r/min)	200-550(6steps )	200-550(6steps )
Magnetic adhesion(N)	>18000	>18000
Core drill(mm)	12-100	12-100
Twist drill (mm)	1-32	1-32
max Travel (mm)	270	270
Min.steel plate thickness(mm)	10	10
Spindle taper	Morse3#	Morse3#
Tapping	M36	M36
Weight (kg)	29	31
Rotation Angle	/	Left and right 45°
Horizontal Travel(mm)	/	20
