1370V High Precision CNC Machining Tool for Good Surface Metal Mold Making
Basic Info.
Model NO.
WMC1370
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Spindle Taper
Bt50
Spindle Motor
18.5kw
System
Syntec/Mitsubishi/Fanuc/Siemens
Max Load
1200kg
Name
Mold Metal Cutting CNC Vertical Machining Center
X/Y/Z Speed
30/30/30 M/Min
Tool Alignment
Auto Tool Checking
Working Table
1400*700
Precision
+-0.005/300mm
Repeat Precision
+-0.003mm
Power
5.5kw 380V 3 Phase
Spindle Speed
6000 Rpm
Max Working Speed
10000mm/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Type
CNC Vertical Machining Center
Transport Package
Sea Worthy Plywood Case
Specification
4500*2900*3100
Trademark
WT
Origin
Dongguan City China Prc
HS Code
8459619000
Production Capacity
2000PCS/Year
Product Description
VMC1370 Vertical Machining Center with High Precision Milling Capacity for Mold,Mold Base,Hardware,Auto Parts ProcessingProduct Description

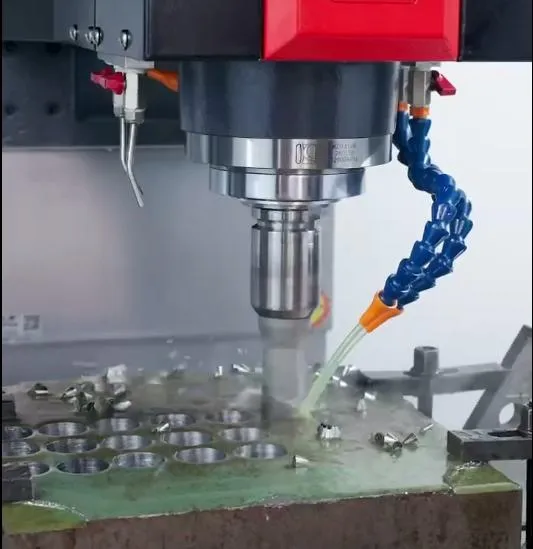

Fixed-column type vertical machining center machine tool adopts mechatronics design, beautiful appearance, and can be used for precision cutting. After the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of various processes such as milling, drilling, boring, expanding, reaming, object, and tapping. It is suitable for multi-variety processing of complex parts such as dry, medium and small boxes, plates, discs, bright bodies, etc. It is widely used in auto parts, valves, construction machinery, IT equipment, optical equipment, medical equipment and aerospace, etc. industry.
Product Paramenters
| Item | Unit | VMC-1160 | VMC1270 | VMC1380 | VMC1580 |
| X/Y/Z axis travel | mm | 1100/630/600 | 1200/700/700 | 1300/800/800 | 1600/800/700 |
| Distance from spindle end to work table | mm | 150-750 | 100-800 | 102-920 | 100-800 |
| Distance from spindle center to column guide surface | mm | 690 | 780 | 800 | 880 |
| Table size (length X width) | mm | 1300X680 | 1400x700 | 1400x800 | 1600x800 |
| T-slot (number-size-pitch) | mm | 5X18X110 | 5-18-125 | 5-18-125 | 5-18-125 |
| Allowable load | kg | 1000 | 1200 | 1200 | 1400 |
| Spindle taper hole - outer diameter | No. | BT40 | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 |
| Spindle maximum speed | r/min | 12000 | 6000 | 6000 | 6000 |
| Spindle motor maximum power | kw | 11/15 | 18.5 | 18.5 | 18.5 |
| X/Y/Z axis rapid traverse speed | m/min | 30/30/30 | 30/30/30 | 30/30/30 | 30/30/30 |
| Maximum chip speed | mm/min | 10000 | 10000 | 10000 | 10000 |
| Tool magazine (option) | Disc magazine | Disc magazine | Disc magazine | Disc magazine | |
| Number of tools | T | 24 | 24 | 24 | 24 |
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeatability | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Machine weight | kg | 9000 | 11500 | 12500 | 13500 |
| Dimensions (L/W/H) | mm | 3100/2550/2550 | 4500/2900/3100 | 4500/3500/3100 | 5200/2900/3100 |
