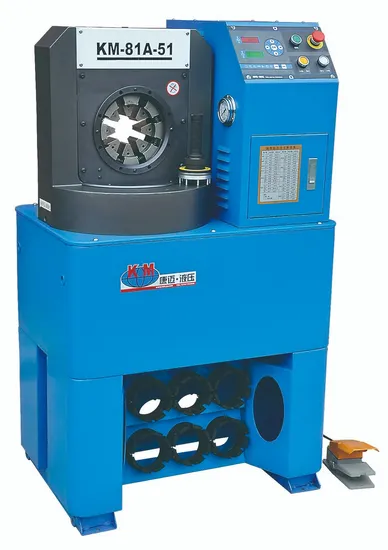

Ce Qualitified Ultrathin Hose Crimping Machine for 2" Hose with Elbow

Ce Qualitified Ultrathin Hose Crimping Machine for 2" Hose with Elbow

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
KM-81A-51
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Product Name
Ultrathin Hydraulic Hose Crimping Machine
Crimp Rage
1/8 Inch to 2 Inch
Machine Max Opening
157mm
Die Material
Special Steel
Machine Valves
From Taiwan
Crimping Force
420ton
Volume(L-W-H)
790*580*950(mm)
Transport Package
Standard Export Plywood Case
Specification
Approved CE and ISO
Trademark
Kangmai
Origin
Handan, China
HS Code
8462919000
Production Capacity
2000 Sets/Year

Product Description


Technical Datas Of Superthin Hydraulic Hose Crimping Machine KM-81A-51
Model NO. KM-81A-51
Crimper Rage 1/8 inch -2 inch IV
Standard voltage&motor 380V/4kW
Crimping Force 420 T
Opening without dies φ155mm
Opening above 60mm
Open Time within 3S
Close Time within 9S
Hydraulic Oil Winter: YB-N32; Summer: YB-N46
No.of standard die sets 10 sets
Quick change tool+die shelf has
Systematic Pressure 30Mpa

Advantages Of KM-81A-51 Hydraulic Hose Crimping Machine
1). Ultra thin body with large opening, easy for elbow to go through;
2). Operating system upgrade easy and intelligence;
3). It is suitable for non-standard fitting;
4). With quick change tool.
5). Added die base resin gasket to protect the machine from debris dropping.
6). It is a good choice for large production with high efficiency
Applications Of KM-81A-51 Hydraulic HoseCrimping Machine
1).SAE 100 R 13 2" 4-LAYER steel wire hose.
2).EN856 2" 4SP hose.
3).EN856 2" 4SH hose.
4).Big flange and special elbow fittings and tube
Hydraulic Hose Crimping Machine why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimp high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging not cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.
