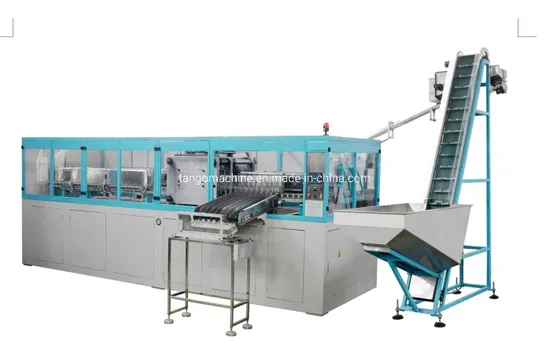

8-Cavity Pet Bottle Blowing Bottle-Blowing-Machine Machinery

Product Description

Product description:

	UNIT	RYSB-C06
		90/8
Number of cavities		8
Clamping force	Kn
Max.heating power	Kw	48
Operation pressure	Kg/cm2	8
Max.blowing pressure	Kg/cm2	30
Theoretical output	bph	8000 (500ml)
Max.container volume	ltr	1.5
Max.inlet outer diameter	mm	42
Max.product ovter diameter	mm	90
Max.product height	mm	320
Weight	t	5.5
Size(L*W*H)	mm	6100*2000*2000. 6100+2000

	UNIT	RYSB-D04
		68/8-3S
Number of cavities		8
Clamping stroke	mm	100
Max.heating power	Kw	45
Operation pressure	Kg/cm2	8
Max.blowing pressure	Kg/cm2	30
Theoretical output	bph	8000-9000
Max.container volume	ltr	0.6
Max.inlet outer diameter	mm	38
Max.product ovter diameter	mm	68
Max.product height	mm	250
Weight	t	5
Size(L*W*H)	mm	5300*1950*1900

		UNIT	RYSB-D01					RYSB-D03						RYSB-D04
			68/4	100/2	140/2	200/1	230/1	68/6	90/4	100/4	118/4	140/3	200/2	68/8	90/6	100/6	140/4	200/3
MOLDING	Number of cavity	Cavities	4	2	2	1	1	6	4	4	4	3	2	8	6	6	4	3
	Clamping stroke	mm	100	120	160	230	260	100	110	120	140	160	230	100	110	120	160	230
	Cavity spacing	mm	76.2	114.3	152.4	228.6	254	76.2	101.6	114.3	127	152.4	228.6	76.2	101.6	114.3	152.4	228.6
	Carriage unit	pcs	84	56	42	28	25	124	93	83	82	63	56	159	125	122	83	56
CONTAINER	Max. Bottle volume	Itr	0.6	2	3	6	12	0.6	1.5	2	2.5	3.5	6	0.6	1.5	2	3.5	6
	Max. neck diameter	mm	42	42	56	56	80	38	38	38	38	56	56	38	38	38	56	56
	Max. Bottle diameter	mm	68	100	140	200	230	68	90	100	118	140	200	68	90	100	140	200
	Max. Bottle height	mm	250	350	350	350	420	250	320	350	350	350	350	250	320	350	350	350
THEORETICAL OUTPUT		bph	4000	2000	1600	600	500	7200	4000	4000	3600	2400	1200	9600	6000	6000	3200	1800
ELECTRICAL SYSTEM	Max. heating power	kw	27	27	27	36	36	40	54	54	54	54	54	54	54	54	54	54
AIR SYSTEM	Operating pressure	kg/m2	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
	Blowing pressure	kg/m2	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30
	Max. capacity of air flow	m3/min	1.8	2	2.5	2	2.5	2.5	3.2	4.3	5	4	5	3.2	4.8	6.4	5.2	5.8
MACHINE	Machine size	m	2.8x1.8x2			2.8x1.95x2		4.35x1.8x2		4.4x18x2	1.85x1.8x2	4.45x1.8x2	4.65x1.8x2	5.55x1.95x2	5.95x1.95x2	6.5x1.95x2	5.95x1.95x2
	Machine weight	t	1.8					3.8		4		4.3		5	5.5

FEATURES:
• Linear construction transports preform for heating and bottle forming.

• Airbag locking mold.

• Upgrade production capacity.

• Upgrade power effciency.

• Simplified operation by MMI control panel.

• Modular design facilitates maintenance.

• Save investment and enhance competition.

• Air recovery system(air consumption will be saved 10-25%).

CHOOSE SERVO CONTROL:

•Output will be improved 2030% per unit time.

•Power consumption will be saved 15-25% (Power consumption depends on bottle shape).

•Choose servo control to ensure high-speed operation and precise locating.
APPLICATIONS:
Foods, oil, drink, mineral water, alcohol medicine, chemical,hot filling,Cosmetic and all kinds of bottles.
PET Stretch Blow Moulding Machine is a kind of equipment that makes plastic particles into hollow containers through blow molding process. The more common models include one-time hollow extrusion blowers using PP and PE, and two-time molding using PET, PC or PP. Injection stretch blow molding machine, as well as the newly developed multi-layer hollow extrusion and stretch blow molding. Zhejiang Huangyan Ruiying is professional China PET Stretch Blow Moulding Machine Manufacturers and two steps automatic pet Stretch Blow Moulding Machine factory,located in the east coast of China, where is the kindom of plastic and mold.Since 1997, Ruiying owning more than 29 patent on fully automatic PET blowing machine,We have our own manufacturing and processing plants, factory direct sales, good quality and low price.We have our own complete processing flow, rigorous processing technology, and precise processing equipment to ensure the quality of our RYSB-D Series Two Steps automatic stretch blow molding machine.
Assistant facility:
Machine part photo:
WORKSHOP:
.
