High-Efficiency Kpz-50L Vacuum Emulsifying Machine for Smooth Blending

Product Description

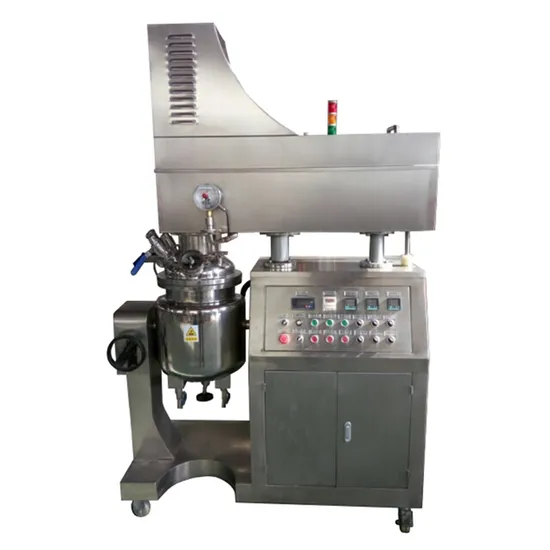

KPZ-50L Vacuum Homogeneous Emulsifying Machine
Product Description
Vacuum emulsifying machine is an ideal option to produce high-grade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application from cosmetics (skin cream, hair gel, lotion ect) and food (jam, chocolate, sauces ect) to pharmacy (ointment, syrup, paste) and chemicals(painting, adhesives, detergents)
The machine is mainly made up of oil tank, water tank, vacuum homogeneous tank (main tank), heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and piping system.
Features 1. All tanks have 3 layers. They are all made from high quality SUS304. Internal and external surface is treated by fine polishing which is safe and good looking. 2. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
3. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
4. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. It uses advanced German technology, with unique structure. The material moves of high-speed in the multi-gap between the rotor and the stator, which forms a strong hydraulic shearing. During few production, it can exert homogenizing effect fully.
5. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing
6. Customer can choose frequency conversion timing homogenizer and highest rotate speed is 2900 r/min
7. For the heating system and oil tank and water tank, the heating power is up to 8KW. The asbestos insulation system is installed outside of the external layer. It not only helps thermal reduction, also protect the operators being burned.
8. The oil tank and water tanks are equipped with rating stirring dispersion device 0.55KW, so that oil and water could be heated more quickly and evenly.
9. Vacuum system is vacuum suction which applies Rotary Vane Vacuum Pump defoaming treatment (tap water can be recycled and cooling). It will increase homogenization effect.
10. The lid is with a light observation hole, which can keep control of the material emulsification situation in the kettle. There is a small material entrance, which is convenient to add special essence into the kettle.
11. Bottom material discharging is easy to operate. The finished materials can be directly moved into the filling and packing system. The materials can also be dumped out, which is easy to clean.
12. Control system is with digital time relay device, which can adjust the homogenizer speed and working time depending on the features of different products. Electric cabinet can get all controls for power, temperature display, controlling voltage, current, and frequency together. Therefore, the homogenization machine settings has a reasonable combination. The operation is easy to learn.
Product Parameters
1. Main tank

Name	50L emulsifying mixer (Main Tank)
Capacity	Designed capacity: 50L
	Working capacity: 45L
	Min working capacity: 25L
Material (SUS304)	Internal layer thickness:4mm
	Jacket : 4mm
	External layer: 3mm
Working life	More than 10 years
Mixing way	Frame type scraping/mixing and fixed oar
Homogenizing way	Upper
Homogenizing power	2.2KW
Homogenizing speed	2800 rpm
Granule size	0.2-0.6um
Lid open way	Electric lifting (hydraulic system is optional)
Heating way	Electric heating (steam heating is optional)
Material feeding way	Tilt and low valve
Pressure	-0.09Mpa

2. Water tank

Name	50L water boiler (Water Tank)
Capacity	Designed capacity:40L Working capacity: 32L
Mixing way	Disperse plate
Disperse plate power	0.55KW
Disperse speed	1400rpm
Cover opening way	Active way
Temperature display	Numeral
Material feeding way	Upper feeding
Parameter	Working pressure inside:-0.09Mpa
Material (SUS304)	Internal layer: 4mm
	Jacket layer: 4mm
	External layer: 2mm

3. Oil tank

Name	100L oil boiler (Oil Tank)
Capacity	Designed capacity: 32L Working capacity: 25L
Mixing way	Disperse plate
Disperse plate power	0.55KW
Disperse speed	1400rpm
Cover opening way	Active way
Temperature display	Numeral
Material feeding way	Upper feeding
Parameter	Working pressure inside:-0.09Mpa
Material (SUS304)	Internal layer: 4mm
	Jacket layer: 4mm
	External layer: 2mm

General information of KPZ--50 L

Power supply	380V, 50Hz Can be customized
Total rate:	10.5 KW
Machine weight	800 kg
Dimension	1600*650*2000 mm (main tank) 900mm ×600mm × 1300mm (oil and water tank)
Spare parts	Spare parts for 1 year
Guarantee	1 year
Commissioning	Finish at buyer's factory and testing before shipment
Working life	More than 10 years

Detailed Photos
Hot Products
Packaging & Shipping
one piece packed in a carton
inner package pearl wool
outer package export carton
packed by belt
