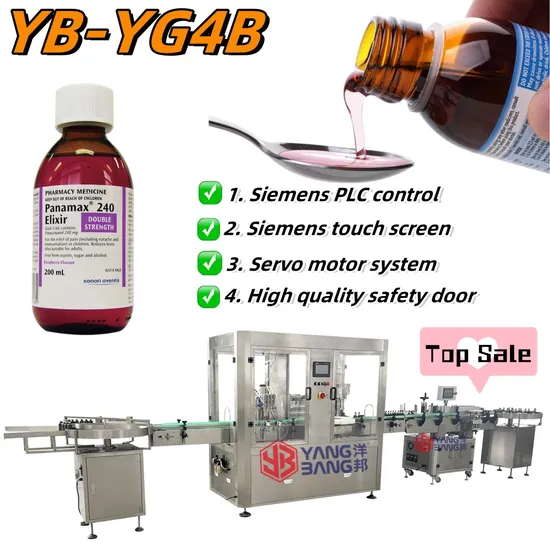

Yb-Yg4b Easy to Operate Automatic 100ml 300ml Syrup Beverages Filling Capping Machine
| US$10,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YB-YG4B
Type
Piston Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Packaging
Bottle
Packaging Material
Plastic
Filling Head Number
4
Capping Head Number
1
Filling Volume
50-500ml
Capicity
10-40bottles/Min
Filling Accuracy
≤±1%(Depends on Products)
Pass Rate
≥98%
Power Supply
1pH,220V,50/60Hz
Power
1.6kw
Net Weight
600kg
Overall Dimension
2200*1500*1900mm
Transport Package
Wooden Box Yangbang
Specification
600kg
Trademark
Yangbang
Origin
Jiangsu
Packaging & Delivery
Package Size
240.00cm * 170.00cm * 210.00cm
Package Gross Weight
700.000kg
Product Description
YB-YG4B Easy to Operate High Quality Full Automatic 100ml 300ml Syrup Beverages Filling Capping Machine Product Parameters| Model | YB-YG4B |
| Filling head number | 4 |
| Capping head number | 1 |
| Filling volume | 50-500ml |
| Capicity | 10-40bottles/min |
| Filling accuracy | ≤±1%(depends on products) |
| Pass rate | ≥98% |
| Power supply | 1Ph,220v,50/60Hz |
| Power | 1.6kw |
| Net weight | 600kg |
| Overall dimension | 2200*1500*1900mm |
Product Description
Usage: This machine is mainly used for syrup, drinks, soybean sauce, vinegar, cod-liver oil, olive oil, liquid calcium, wine, liquid fertilizer, essential oil, toner, hair oil, laundry detergent, ink,disinfectant, injection, industrial alcohol and various liquid filling and capping. Function and features : 1. Adopts plunger type metering pump filling, high precision;The structure of pump adopts fast disassembly institutions, easy to clean and disinfect.
2. PLC control system, color touch screen display, machine has function of counting automatically.
3. The filling nozzle was equipped with drip-proof device.
4. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent bubbles.
5. Machine body is made of 304 stainless steel, full compliance with GMP standard
