Xk5032 Xk5034 Low Price Head Turret Vertical Milling Machine

Product Description

Universal Milling 4H Vertical Turret Milling Machine XK5032 rocker milling machine
Product Description
Product model:
XK5032/XK5040 cnc milling machine

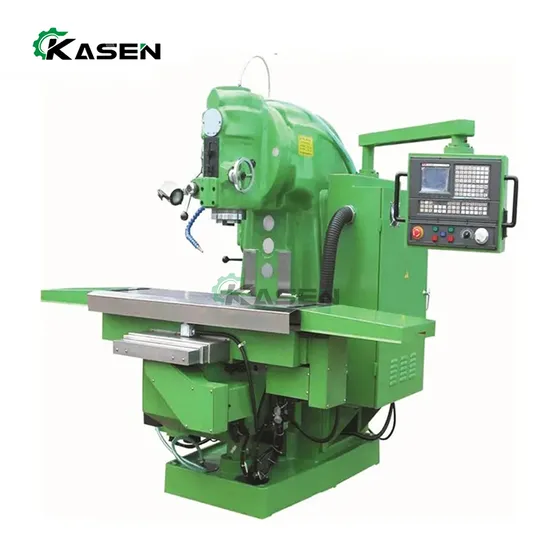

Product picture:
The main performance characteristics:
1. The fuselage and main components are of high strength cast iron, metallographic structure stability, ensure the stability of machine tool for long-term use.
2. The column bottom A font bridge type structure, Combined with the base of the box body, greatly reduce the heavy cutting vibration body,
3. The X/Y/Z three axis adopt Taiwan linear guide, high precision, accurate positioning, small friction, fast reaction speed,
4. The high speed, high precision and high rigidity spindle unit,
5. The intermittent automatic lubrication.
Application:
1. The product for the X, y, Z axis servo control semi closed loop vertical CNC bed type milling machines, three axis were rectangular hardened rail, rail width, large span, structure and dimension is compact and reasonable.
2. Can be realized on a variety of disk, plate, shell, cam, mold and other complex parts of a fixture,
3. Suitable for multi variety, medium and small volume production, can meet the complex, high precision parts processing.
4. Is mechanical manufacturing, mold, equipment, instrumentation, automotive, motorcycle and other industries of the ideal processing equipment.
5. Can be petty four axis of rotation, in order to meet the special requirements of machining parts
Product main technical specifications:

Specifications	Units	XK5032	XK5040
Table size	mm	1320x320	1700x400
Table travel(X.Y.Z)	mm	800x280x350	920x330x450
T-type slot (numbers / width /space)	mm	3-18-70	3-18-90
Max. load working table	kg	320	500
Distance from spindle nose to table	mm	40-390	50-500
Distance from spindle axis to column guide way	mm	350	450
Rapid feed speed(X.Y.Z)	mm/min	6000/6000/3000	6000/6000/3000
Feed speed X.Y(Z)	mm/min	6-3200(3-1600)	6-3200(3-1600)
Spindle travel	mm	70	85
Spindle taper		ISO50(7:24)	ISO50(7:24)
Max. swivel angle of vertical milling head	°	±45°	±45°
Spindle speed range	rpm	30-1500(18 steps)	30-1500(18 steps)
Spindle motor power	KW	7.5	11
Longitudinal, transverse feed motor torque(X.Y)	N. m	12	12
Vertical feed motor torque (Z)	N. m	22	22
Max. spindle torque	N. m	1000	1000
Overall dimensions(Lx W x H)	mm	1929x2055x1960	2310x2200x2400
Machine weight	Kg	2800	4250

After Sales Service
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost


FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
