ISO 13126-2 Window And Door Handle Fatigue Tester

Product Description

Product Description

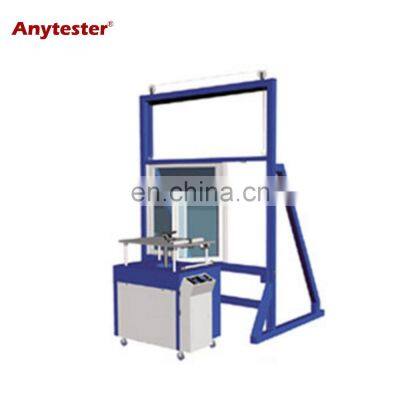

Product DescriptionAT620 Window and Door Handle Fatigue tester is used to determine the repeated opening and closing performance.Standard ISO 13126-2JG/T 124 Note: this Window and Door Handle Fatigue tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.Features 1. AT620 Window and Door Handle Fatigue tester adopts 7 inch color touch screen, PLC control;2. Independent control of 3 working positions, the working frequency can be settable;3. Servo torque sensor makes the handle rotate, automatically real-time measure the rotational torque.AT620 Window and Door Handle Fatigue tester will automatically stop and alarm when the torque is abnormal;4. Provided with different assemble accessories to test handles of different specification.Specification Model Max. Torque 30N.mTest position 3pcsInitial torque 3.0±1.0N.mMax. Test frequency 300 times/hDimensions 1400mm×700mm×1500mm (L×W×H)Power supplyAC220V, 50Hz, 2.0kw
