OEM 5W Production Date Laser Marking Machine CE Certified Wood Portable

Product Description

Product Description

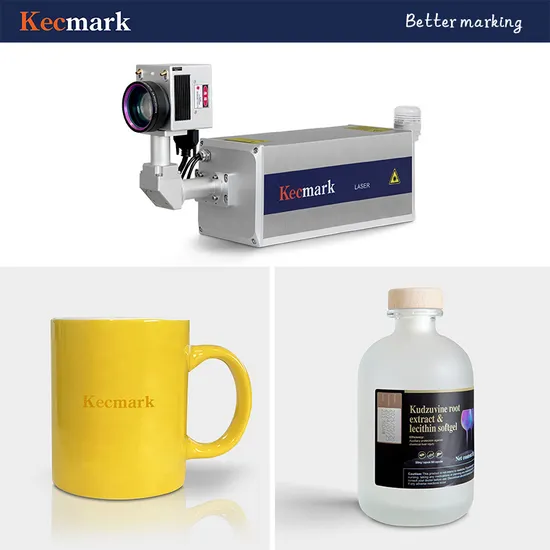

UV Laser Marking Machine
UV lasers are designed with a highly absorptive wavelength of 355 nm(nanometre) for product marking.
As a result of their high absorption rate, they are perfect for "cold marking," offers a lower power,Typically suitable for marking heat-sensitive materials and delicate substrates. Such as plastic and glass ,ensuring there are no heat stresses on the material and no damage on the packaging .
Product Parameters

Laser	Type	Ultraviolet nanosecond solid-state lasers
	Pulse frequency range	10~200KHz
	Power	3W / 5W / 10W
	Beam expander	6x (customizable)
	Wavelength	355nm
	Laser class	Class 4 laser products ~ in line with IEC60825-1 standard
Identify attributes	Identify the direction	0- 360°
	Identify the region	Standard 100*100mm (customizable)
	Standard working distance	255~265mm
	Spot size	0.8mm ( 0.2mm)
	Marking content	1D and 2D barcodes, icons, Chinese and English and numbers
	Scribing speed	The fastest marking speed can reach 20m/s
Interface	Operator interface	10-inch full-color touchscreen
	Communication interfaces	RJ45, RS232, RS485, USB SD card
Operating environment	Rated voltage	200~240V 50/60Hz
	Ambient temperature	-20~65ºC
	The power of the whole machine	≤1kW (including water tank)
	Humidity range	non-condensing Relative humidity < 80%
	Ingress protection	Standard IP54 (customizable)
	Ingress protection	Air-cooled/ water-cooled
	Product quality	Industrial chiller weight:29.5kg Laser weight:15kg

Product Details
Marking cases
UV laser marking machine is suitable for all materials that have adverse reaction to heat, such as food, pharmaceutical packaging materials, silicon wafers, LCD liquid crystal screen.
UV laser marking machine main application scenes:
1. Food industry: to avoid leakage caused by laser penetration of the outer packaging when coding.
2. Pharmaceutical industry: to achieve high colour without thermal damage coding, while having visual readability, in line with the corresponding regulations and standards.
3. Hygiene products industry: adopting cold light source for coding, rejecting dust explosion caused by coding.

Application Scenario

Company Profile

Hangzhou Kechuang Mark Technology Co.,Ltd focuses on production identification marking and traceability solutions over 10 years .Our main products include UV laser marking machine,CO2 laser marking machine,fiber laser marking machine and inkjet printers .Kecmark tech has nature R&D team ,QC and QA process, after-sales service and strong technical engineer team,continuous to innovation and upgrade our laser marking system .

Kecmark has a complete brand supply chain to achieve efficient production and supply, and worry-free quality; The product category is rich and diverse ,from identification and marking,labeling,visual detection to back-end packaging ,helping enterprises to achieve intelligent ,visual and digital production .

Production Process

Non-standard customisation

Kecmark provides perfect laser coding solutions and the latest application scenarios, and supports non-standard customisation of laser marking machines and holders to meet diversified needs.

Exhibitions

Certifications

After Sales Service

	Technical Support Kecmark provides users with free technical support, including online installation guidance, debugging and training of technicians, to ensure that users are proficient in the operation of the equipment, to ensure the smooth progress of production.
	Warranty Maintenance Kecmark provides one year warranty and lifetime maintenance service. During the warranty period, due to mechanical failure or component damage (non-man-made or force majeure factors), except for wearing parts, are entitled to free repair and replacement; beyond the warranty period of the maintenance is only charged at cost.
	Software upgrade Users are entitled to free lifetime software upgrades from the date of purchase, ensuring that the equipment is always equipped with the latest features and best performance.
	Rapid response After-sales service response time is no more than 8 hours. After-sales engineers will provide a clear reply or online maintenance guidance within 24 hours after receiving the maintenance notice until the equipment is repaired.
	Customer access Kecmark regularly visits all customers every year to understand the use and needs of the equipment, and provides professional technical support at any time to ensure long-term customer satisfaction and efficient operation.
	Customised solutions Kecmark provides dealers with complete laser coding solutions and the latest application scenarios, and supports non-standard customisation of laser coding machines and holders to meet diversified needs.

Packaging & Shipping
Marks :
1.) Payment method : By T/T ,pay 30% as deposit , and pay the balance before shipping .
2.) Packaging method : Standard carton box or wooden case optional .
3.) Delivery time : 3-5 working days after deposit payment .
4.) Delivery ways : By sea , air or truck .
5.) Warranty time : 12 month.
6.) After-sales service : 24 hours online technical service one to one .
FAQ

1.What a uv laser marking machine can do? UV laser marking is widely used in the marking of packaging, electrical components, medicine, chemical and construction products for marking production data, batch number, batch number, manufacturer name. 2.How to choose the most suitable laser marking machine? There are five points you need to consider before you choose a laser marker : - Consider what materials you want to mark . - Consider the laser power that you need . - Consider what accuracy and speed that you need . - Consider the support . - Else , safety ,budget,working field , 3.How laser marking machine works? Laser marking works by using a focused beam of light to mark the surface of a material. When the beam interacts with the material's surface, it alters the material's properties and appearance , and then leave the clear ,durable and permanent marks on the materials' surface . 4.How to installation and maintenance the laser marking machine? We will provide installation videos for you before shipping , you can check the videos and installation the laser marker ; if any questions during installation , we can support face to face technical service . Even you are navice , you can take that all easily . As for maintenance , the laser marking machine no neeed special maintenance operations , just routine clean is okay . 5.Can I get some tests before I decide which to buy? Yes , free test offering . Before order , you can send the packaging samples to us , the items that you want to mark the code on it , we will do free test for you with different laser , ensuring that you choose the most suitable ones and help you save money and energy . 6.What's the main difference between the laser marker and inkjet printer? Laser marker and inkjet printer are both coding method for industrial use . The biggest difference between this two method is that laser marker doesn't need consumables and maintenance , it has obvious advantages on anti-conterfeiting , the laser marks are legible and durable on the whole life cycle of the product , and it's resistant to erasure . And the inkjet printer , they deliver coding without alter the materials' properities and appearance , just leave the codes on the surface of the materials . On anti-conterfeiting and traceability solutions , it has safety risks .
