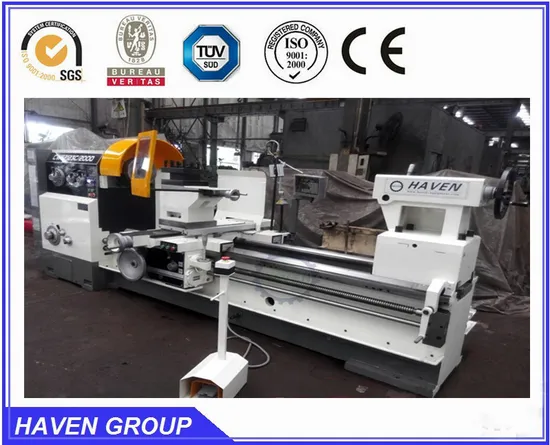

CE Standard Horizontal Lathe Machine CW62163C/2000
| US$99.00-99,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW62163C/2000
Tool Holder
4 station tools
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
max. swing diameter
1630mm
max. workpiece length
2000mm
spindle bore diameter
105mm or 130mm
Transport Package
Wooden Pallet
Specification
CW62163C/2000
Trademark
HAVEN
Origin
China
HS Code
846694
Production Capacity
50 Units Per Month
Product Description
Mechanical Horizontal Lathe Machine CW62163C/2000Main Features:
This series horizontal lathe is a new-designed product, which are based on 63C series lathe according to the market's demand. The lathe is especially suitable for machining light-duty big disc work pieces and big diameter shaft work pieces.It including: CW61/2103C, CW61/2123C,CW61/2143C,CW61/2163C,CW61/2183C.The distance between centers are 1500mm, 2000mm, 3000mm, 4500mm, 6000mm.
Main Specification:
| Item | Unit | Spec./Model | ||||
| CW61103C CW62103C | CW61123C CW62123C | CW61143C CW62143C | CW61163C CW62163C | CW61183C CW62183C | ||
| Swing in bed | mm | 1030 | 1230 | 1430 | 1630 | 1830 |
| Swing in gap | mm | 1200 | 1400 | 1600 | 1800 | 2000 |
| Swing over cross slide | mm | 700 | 900 | 1100 | 1240 | 1440 |
| Distance between centers | mm | 1500,2000,3000,4500,6000 | ||||
| Length in gap from face plate | mm | 380 | ||||
| Spindle nose | C11 or D11 | |||||
| Spindle bore | mm | 105,130 | ||||
| Spindle speed | rpm/steps | 10-800/18 7-576/18 6-480/18 | ||||
| Cross slide travel | mm | 615 715 815 915 | ||||
| Top rest travel | mm | 225 300 | ||||
| Rapid traverse | mm/min | Z:3200, X:1400 | ||||
| Quill diameter | mm | 120 | ||||
| Quill travel | mm | 270 | ||||
| Quill taper | MT6 | |||||
| Bed width | mm | 610 | ||||
| Metric threads | mm/kinds | 1-240/53 | ||||
| Inch threads | tpi/kinds | 30-2/31 | ||||
| Module threads | mm/kinds | 0.25-60/42 | ||||
| Diametral pitch threads | tpi/kinds | 60-0.5/47 | ||||
| longitudinal feeds | mm/r | 0.07-16.72 | ||||
| ain motor power | kw | 0.04-9.6 | ||||
| Main motor power | kw | 11 | ||||
